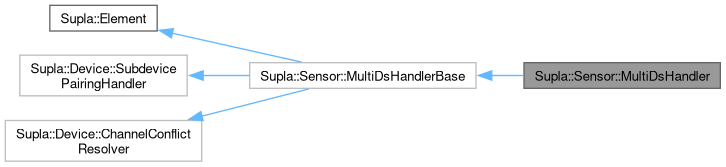

Inheritance diagram for Supla::Sensor::MultiDsHandler:

[legend]

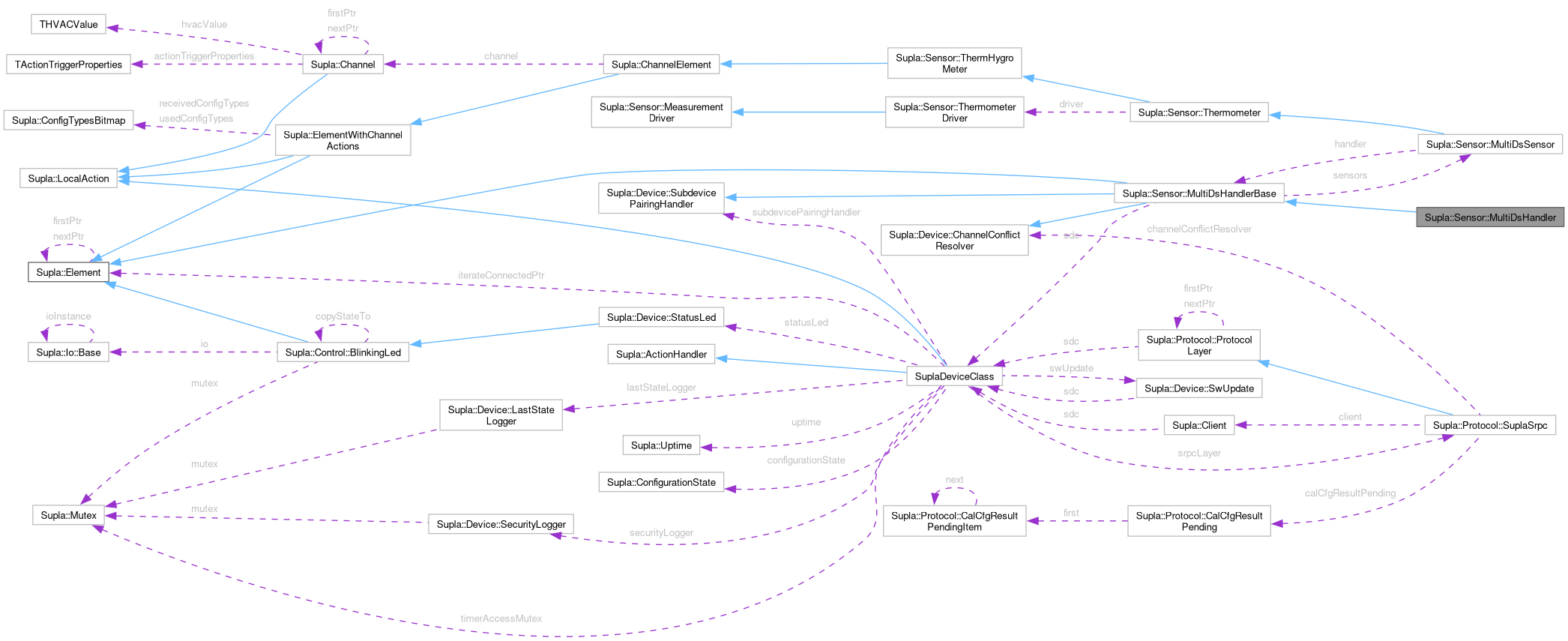

Collaboration diagram for Supla::Sensor::MultiDsHandler:

[legend]

Public Member Functions
	MultiDsHandler (SuplaDeviceClass *sdc, uint8_t pin)

void	onInit () override
	Third method called on element in SuplaDevice.begin()

double	getTemperature (const uint8_t *address) override

double	getTemperature (uint8_t idx)

Supla::Sensor::MultiDsSensor *	getThermometer (uint8_t idx)

void	setUseSynchronousCommunication (bool synchronous)
	Enables or disables synchronous (blocking) temperature conversion.

Public Member Functions inherited from Supla::Sensor::MultiDsHandlerBase
	MultiDsHandlerBase (SuplaDeviceClass *sdc, uint8_t pin)

void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc) override
	Method called each time when device successfully registers to Supla server.

void	iterateAlways () override
	Method called on each SuplaDevice iteration.

bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

void	onLoadConfig (SuplaDeviceClass *sdc) override
	First method called on element in SuplaDevice.begin().

void	onInit () override
	Third method called on element in SuplaDevice.begin()

bool	startPairing (Supla::Protocol::SuplaSrpc srpc, TCalCfg_SubdevicePairingResult result) override

bool	onChannelConflictReport (uint8_t *channelReport, uint8_t channelReportSize, bool hasConflictInvalidType, bool hasConflictChannelMissingOnServer, bool hasConflictChannelMissingOnDevice) override

void	setMaxDeviceCount (uint8_t count)
	Sets the maximum number of DS18B20 devices handled by this instance.

void	setChannelNumberOffset (uint8_t offset)
	Sets the offset for channel number.

void	setUseSubDevices (bool useSubDevices)
	Sets the channel number offset for paired thermometers.

void	setPairingTimeout (uint8_t timeout)
	Sets the timeout for the pairing process.

void	disableSensorsChannelState ()
	Disables channel state in all thermometers managed by this handler.

void	searchForFirstSensorDuringInitialization ()
	Sets automatic single-sensor initialization mode.

Public Member Functions inherited from Supla::Element
	Element (ElementMode mode=ElementMode::Registered)

Element *	next ()
	Returns next Element from the list.

virtual void	purgeConfig ()
	Removes all configration data related to the element from Storage::Config.

virtual void	onLoadState ()
	Second method called on element in SuplaDevice.begin().

virtual void	onSaveState ()
	Method called periodically during SuplaDevice iteration.

virtual bool	isStateStorageMigrationNeeded () const
	Method called after onInit() to check if state storage migration is needed.

virtual bool	iterateConnected (void *ptr)
	deprecated

virtual void	onTimer ()
	Method called on timer interupt.

virtual void	onFastTimer ()
	Method called on fast timer interupt.

virtual void	onSoftReset ()
	Method called when device soft restart is triggered.

virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.

virtual int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue)
	Handles "new value" request from server.

virtual void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value)
	Fills TSD_SuplaChannelNewValue based on current state.

virtual bool	getRemainingCountdownTimerSec (uint32_t *remainingSec) const
	Returns active countdown timer remaining time in seconds.

virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.

virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.

virtual uint32_t	getCalcfgPendingTimeoutMs (TSD_DeviceCalCfgRequest *request) const
	Returns timeout in milliseconds for CALCFG requests that become pending.

virtual uint8_t	handleChannelConfig (TSD_ChannelConfig *newChannelConfig, bool local=false)
	Handles "set channel config" request from server.

virtual uint8_t	handleWeeklySchedule (TSD_ChannelConfig *newWeeklySchedule, bool altSchedule=false, bool local=false)
	Handles "set channel config" with "weekly schedule" type request from server.

virtual void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result)
	Handles "set channel config" reply from server.

virtual void	handleChannelConfigFinished ()
	Handles "channel config finished" message from server.

virtual void	handleChannelConfigFinished (int channelNumber)
	Handles "channel config finished" for a specific channel.

int	getChannelNumber () const
	Returns channel number.

int	getSecondaryChannelNumber () const
	Returns secondary channel number.

virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.

virtual const Channel *	getChannel () const
	Returns pointer to main channel.

virtual Channel *	getChannel ()

virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.

virtual Channel *	getSecondaryChannel ()

const Channel *	getChannelByChannelNumber (int channelNumber) const
	Returns pointer to the channel matching channelNumber.

Channel *	getChannelByChannelNumber (int channelNumber)

virtual void	generateKey (char output, const char key) const
	Generates key used for Config.

Element &	disableChannelState ()
	Disables channel state (i) function.

bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.

virtual bool	isAnyUpdatePending () const
	Returns true if any update is pending.

void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.

bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.

bool	setFunction (uint32_t newFunction)
	Sets channel's function.

virtual bool	setRuntimeFunction (uint32_t newFunction)
	Sets channel's function at runtime.

virtual void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction)
	Called when channel function changes.

Public Member Functions inherited from Supla::Device::SubdevicePairingHandler
void	setPairingObserver (SubdevicePairingObserver *newObserver)

Public Member Functions inherited from Supla::Device::ChannelConflictResolver
void	setChannelConflictObserver (ChannelConflictObserver *newObserver)

Protected Member Functions
int	refreshSensorsCount () override

void	requestTemperatures () override

bool	getSensorAddress (uint8_t *address, int index) override

Protected Member Functions inherited from Supla::Sensor::MultiDsHandlerBase
Supla::Sensor::MultiDsSensor *	addDevice (uint8_t *deviceAddress, int channelNumber=-1, int subDeviceId=-1)

int	findFreeSensorSlot () const

int	findNextFreeSubDeviceId () const

int	findChannelNumber (int sensorSlot) const

Protected Member Functions inherited from Supla::Device::SubdevicePairingHandler
void	notifySubdevicePairingStarted (uint16_t maximumDurationSec)

void	notifySubdevicePairingFinished (const TCalCfg_SubdevicePairingResult &result)

Protected Member Functions inherited from Supla::Device::ChannelConflictResolver
void	notifyChannelConflictResolution (bool handled)

Protected Attributes
OneWire	oneWire

DallasTemperature	dallasTemperature

Protected Attributes inherited from Supla::Sensor::MultiDsHandlerBase
SuplaDeviceClass *	sdc = nullptr

MultiDsSensor *	sensors [MULTI_DS_MAX_DEVICES_COUNT] = {}

Protected Attributes inherited from Supla::Element
bool	registeredElement = true

Element *	nextPtr = nullptr

Additional Inherited Members
Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order)

static Element *	last ()
	Returns last Element (based on creation order)

static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.

static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.

static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.

static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.

static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.

static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.

Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr

static bool	invalidatePtr = false

Member Function Documentation

◆ getSensorAddress()

bool Supla::Sensor::MultiDsHandler::getSensorAddress	(	uint8_t *	address,
		int	index )

inlineoverrideprotectedvirtual

Implements Supla::Sensor::MultiDsHandlerBase.

◆ getTemperature()

double Supla::Sensor::MultiDsHandler::getTemperature ( const uint8_t * address )

inlineoverridevirtual

Implements Supla::Sensor::MultiDsHandlerBase.

◆ onInit()

void Supla::Sensor::MultiDsHandler::onInit ( )

inlineoverridevirtual

Third method called on element in SuplaDevice.begin()

Method called during SuplaDevice initialization. I.e. load initial state, initialize pins etc.

Reimplemented from Supla::Element.

◆ refreshSensorsCount()

int Supla::Sensor::MultiDsHandler::refreshSensorsCount ( )

inlineoverrideprotectedvirtual

Implements Supla::Sensor::MultiDsHandlerBase.

◆ requestTemperatures()

void Supla::Sensor::MultiDsHandler::requestTemperatures ( )

inlineoverrideprotectedvirtual

Implements Supla::Sensor::MultiDsHandlerBase.

◆ setUseSynchronousCommunication()

void Supla::Sensor::MultiDsHandler::setUseSynchronousCommunication ( bool synchronous )

inline

Enables or disables synchronous (blocking) temperature conversion.

By default, DallasTemperature operates in asynchronous mode (false), meaning requestTemperatures() starts the conversion and returns immediately (non-blocking mode). The caller is then responsible for ensuring that enough time has passed before reading the temperature value.

When set to true, requestTemperatures() blocks execution until the DS18B20 conversion is complete (up to 750 ms at 12-bit resolution).

This method is a wrapper for DallasTemperature::setWaitForConversion().

The documentation for this class was generated from the following file:

src/supla/sensor/multi_ds_handler.h
