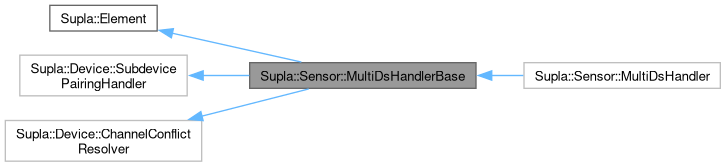

Inheritance diagram for Supla::Sensor::MultiDsHandlerBase:

[legend]

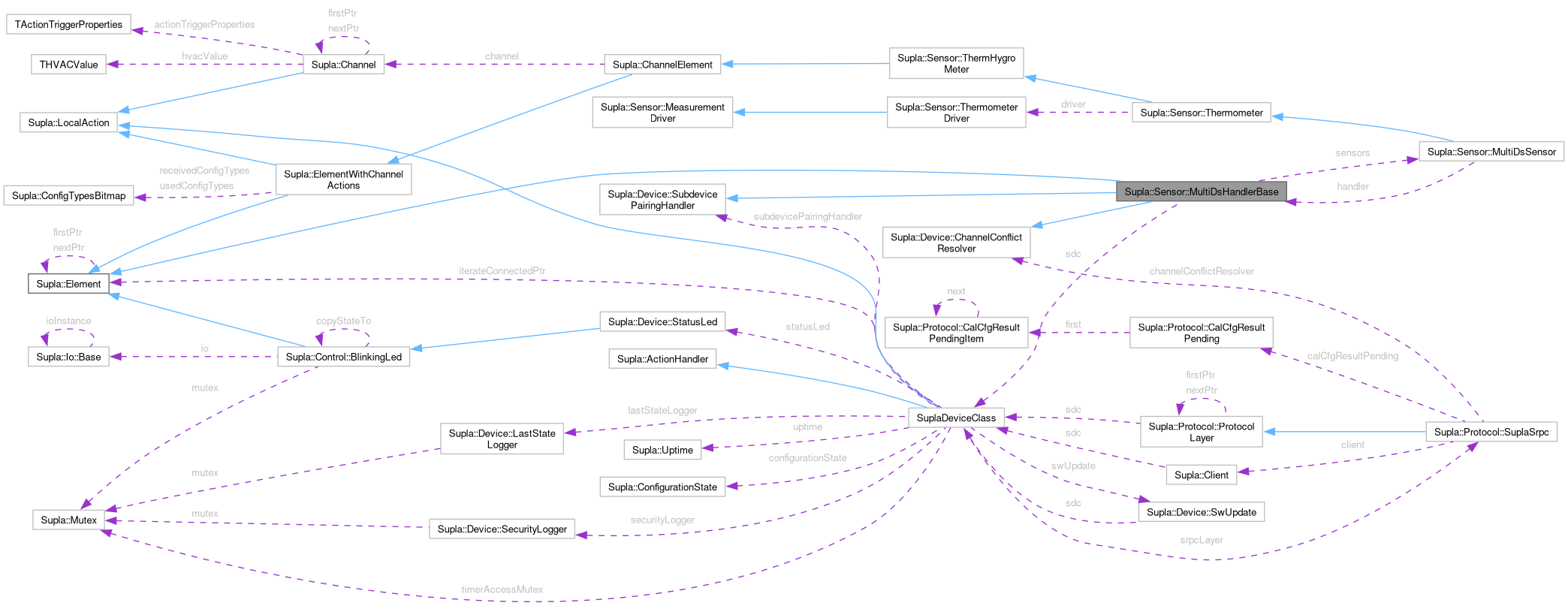

Collaboration diagram for Supla::Sensor::MultiDsHandlerBase:

[legend]

Public Member Functions
	MultiDsHandlerBase (SuplaDeviceClass *sdc, uint8_t pin)
void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc) override
	Method called each time when device successfully registers to Supla server.
void	iterateAlways () override
	Method called on each SuplaDevice iteration.
bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.
void	onLoadConfig (SuplaDeviceClass *sdc) override
	First method called on element in SuplaDevice.begin().
void	onInit () override
	Third method called on element in SuplaDevice.begin().
bool	startPairing (Supla::Protocol::SuplaSrpc srpc, TCalCfg_SubdevicePairingResult result) override
bool	onChannelConflictReport (uint8_t *channelReport, uint8_t channelReportSize, bool hasConflictInvalidType, bool hasConflictChannelMissingOnServer, bool hasConflictChannelMissingOnDevice) override
virtual double	getTemperature (const uint8_t *address)=0
void	setMaxDeviceCount (uint8_t count)
	Sets the maximum number of DS18B20 devices handled by this instance.
void	setChannelNumberOffset (uint8_t offset)
	Sets the offset for channel number.
void	setUseSubDevices (bool useSubDevices)
	Sets the channel number offset for paired thermometers.
void	setPairingTimeout (uint8_t timeout)
	Sets the timeout for the pairing process.
void	disableSensorsChannelState ()
	Disables channel state in all thermometers managed by this handler.
void	searchForFirstSensorDuringInitialization ()
	Sets automatic single-sensor initialization mode.
Public Member Functions inherited from Supla::Element
Element *	next ()
	Returns next Element from the list.
virtual void	purgeConfig ()
	Removes all configration data related to the element from Storage::Config.
virtual void	onLoadState ()
	Second method called on element in SuplaDevice.begin().
virtual void	onSaveState ()
	Method called periodically during SuplaDevice iteration.
virtual bool	isStateStorageMigrationNeeded () const
	Method called after onInit() to check if state storage migration is needed.
virtual bool	iterateConnected (void *ptr)
	deprecated
virtual void	onTimer ()
	Method called on timer interupt.
virtual void	onFastTimer ()
	Method called on fast timer interupt.
virtual void	onSoftReset ()
	Method called when device soft restart is triggered.
virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.
virtual int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue)
	Handles "new value" request from server.
virtual void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value)
	Fills TSD_SuplaChannelNewValue based on current state.
virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.
virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.
virtual uint8_t	handleChannelConfig (TSD_ChannelConfig *newChannelConfig, bool local=false)
	Handles "set channel config" request from server.
virtual uint8_t	handleWeeklySchedule (TSD_ChannelConfig *newWeeklySchedule, bool altSchedule=false, bool local=false)
	Handles "set channel config" with "weekly schedule" type request from server.
virtual void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result)
	Handles "set channel config" reply from server.
virtual void	handleChannelConfigFinished ()
	Handles "channel config finished" message from server.
int	getChannelNumber () const
	Returns channel number.
int	getSecondaryChannelNumber () const
	Returns secondary channel number.
virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.
virtual const Channel *	getChannel () const
	Returns pointer to main channel.
virtual Channel *	getChannel ()
virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.
virtual Channel *	getSecondaryChannel ()
virtual void	generateKey (char output, const char key) const
	Generates key used for Config.
Element &	disableChannelState ()
	Disables channel state (i) function.
bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.
virtual bool	isAnyUpdatePending () const
	Returns true if any update is pending.
void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.
bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.
bool	setFunction (uint32_t newFunction)
	Sets channel's function.
virtual void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction)
	Called when channel function changes.

Protected Member Functions
Supla::Sensor::MultiDsSensor *	addDevice (DeviceAddress deviceAddress, int channelNumber=-1, int subDeviceId=-1)
virtual int	refreshSensorsCount ()=0
virtual void	requestTemperatures ()=0
virtual bool	getSensorAddress (uint8_t *address, int index)=0

Protected Attributes
SuplaDeviceClass *	sdc = nullptr
MultiDsSensor *	sensors [MULTI_DS_MAX_DEVICES_COUNT] = {}
Protected Attributes inherited from Supla::Element
Element *	nextPtr = nullptr

Additional Inherited Members
Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order).
static Element *	last ()
	Returns last Element (based on creation order).
static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.
static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.
static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.
static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.
static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.
static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.
Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr
static bool	invalidatePtr = false

Member Function Documentation

◆ iterateAlways()

void MultiDsHandlerBase::iterateAlways ( )

overridevirtual

Method called on each SuplaDevice iteration.

It should provide all actions that have to be executed periodically regardless of network state.

Reimplemented from Supla::Element.

◆ iterateConnected()

bool MultiDsHandlerBase::iterateConnected ( )

overridevirtual

Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

Returns: true when element didn't communicate with server and next element should be iterated instead. false otherwise.

Reimplemented from Supla::Element.

◆ onChannelConflictReport()

bool MultiDsHandlerBase::onChannelConflictReport	(	uint8_t *	channelReport,
		uint8_t	channelReportSize,
		bool	hasConflictInvalidType,
		bool	hasConflictChannelMissingOnServer,
		bool	hasConflictChannelMissingOnDevice )

overridevirtual

Implements Supla::Device::ChannelConflictResolver.

◆ onInit()

void MultiDsHandlerBase::onInit ( )

overridevirtual

Third method called on element in SuplaDevice.begin().

Method called during SuplaDevice initialization. I.e. load initial state, initialize pins etc.

Reimplemented from Supla::Element.

◆ onLoadConfig()

void MultiDsHandlerBase::onLoadConfig ( SuplaDeviceClass * sdc )

overridevirtual

First method called on element in SuplaDevice.begin().

Called only if Config Storage class is configured. Element should read its configration in this method.

Parameters

sdc

Reimplemented from Supla::Element.

◆ onRegistered()

void MultiDsHandlerBase::onRegistered ( Supla::Protocol::SuplaSrpc * suplaSrpc )

overridevirtual

Method called each time when device successfully registers to Supla server.

Parameters

suplaSrpc

Reimplemented from Supla::Element.

◆ searchForFirstSensorDuringInitialization()

void MultiDsHandlerBase::searchForFirstSensorDuringInitialization ( )

Sets automatic single-sensor initialization mode.

When this flag is enabled, the device will attempt to detect and register one DS18B20 sensor during the initialization phase (onInit), but only if no sensors were restored from configuration inside onLoadConfig().

This mechanism is intended for simple setups with a single thermometer, where automatic pairing at startup is desired without requiring explicit user action.

If at least one sensor is successfully loaded from configuration, no additional scan will be performed.

By default, this flag is not set.

◆ setChannelNumberOffset()

void MultiDsHandlerBase::setChannelNumberOffset ( uint8_t offset )

Sets the offset for channel number.

Normally paired thermometers will get next free channel number. If you plan thermometeres on specific position in the device, use this method to define which first channel number should be assigned.

If you set the offset you need to garantee, that the amount of channel defined in 'maxDeviceCount' will be available just after offset

Default value is -1 so no offset is used

◆ setMaxDeviceCount()

void MultiDsHandlerBase::setMaxDeviceCount ( uint8_t count )

Sets the maximum number of DS18B20 devices handled by this instance.

The default and absolute maximum is 10 devices. The value can only be reduced from the default; setting a higher value has no effect.

If the limit is exceeded, pairing of additional devices will fail.

◆ setPairingTimeout()

void MultiDsHandlerBase::setPairingTimeout ( uint8_t timeout )

Sets the timeout for the pairing process.

The timeout defines how long the handler waits for DS18B20 devices to be detected and paired after the pairing procedure has started.

The default timeout is 5 seconds.

◆ setUseSubDevices()

void MultiDsHandlerBase::setUseSubDevices ( bool useSubDevices )

Sets the channel number offset for paired thermometers.

By default, newly paired thermometers are assigned the next available channel number. If you need thermometers to start at a specific channel position within the device, use this method to define the first channel number to be assigned.

When using an offset, you must ensure that at least 'maxDeviceCount' consecutive channel numbers are available starting from the specified offset.

The default value is -1, which means no offset is applied.

◆ startPairing()

bool MultiDsHandlerBase::startPairing	(	Supla::Protocol::SuplaSrpc *	srpc,
		TCalCfg_SubdevicePairingResult *	result )

overridevirtual

Implements Supla::Device::SubdevicePairingHandler.

The documentation for this class was generated from the following files:

src/supla/sensor/multi_ds_handler_base.h
src/supla/sensor/multi_ds_handler_base.cpp
