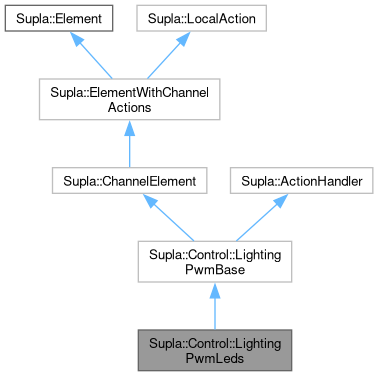

Inheritance diagram for Supla::Control::LightingPwmLeds:

[legend]

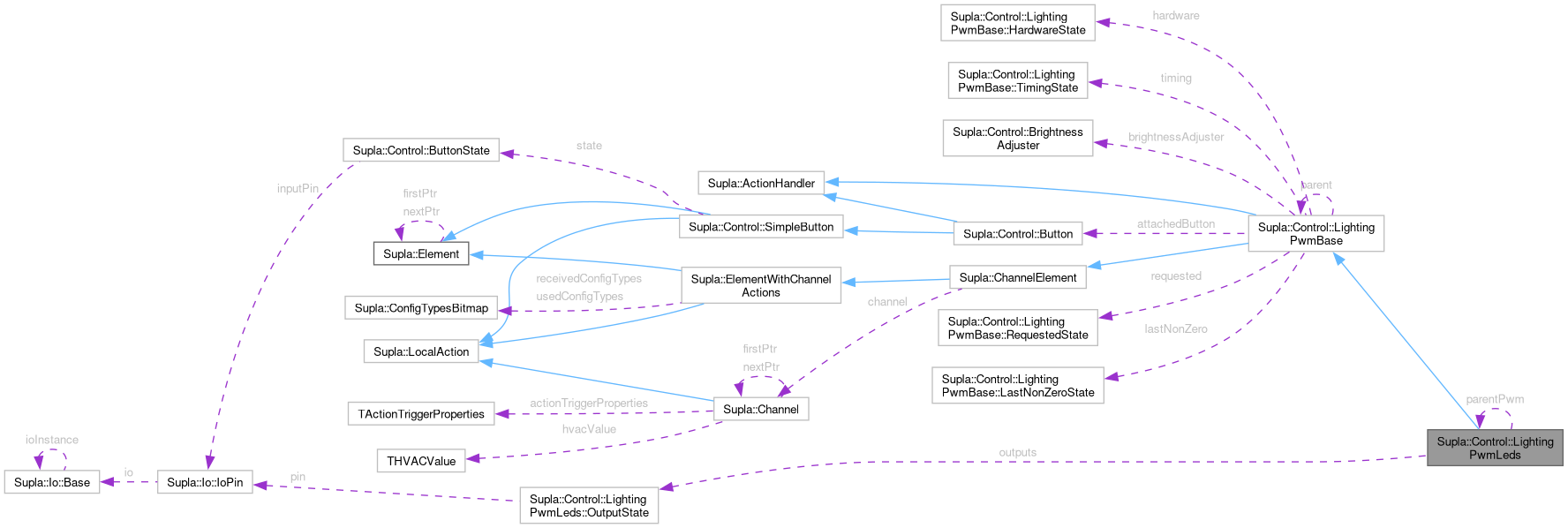

Collaboration diagram for Supla::Control::LightingPwmLeds:

[legend]

Classes
struct	OutputState

Public Member Functions
	LightingPwmLeds (LightingPwmLeds *parent, int out1, int out2, int out3, int out4, int out5)
	LightingPwmLeds (LightingPwmLeds *parent, Supla::Io::IoPin out1, Supla::Io::IoPin out2={}, Supla::Io::IoPin out3={}, Supla::Io::IoPin out4={}, Supla::Io::IoPin out5={})
void	setRGBCCTValueOnDevice (uint32_t output[5], int usedOutputs) override
void	onInit () override
	Third method called on element in SuplaDevice.begin().
void	onLoadConfig (SuplaDeviceClass *sdc) override
	First method called on element in SuplaDevice.begin().
void	setOutputIo (int outputIndex, Supla::Io::Base *io)
Supla::Io::Base *	getOutputIo (int outputIndex) const
int	getOutputPin (int outputIndex) const
Public Member Functions inherited from Supla::Control::LightingPwmBase
	LightingPwmBase (LightingPwmBase *parent=nullptr)
	Constructor.
void	purgeConfig () override
	Removes all configration data related to the element from Storage::Config.
Supla::ApplyConfigResult	applyChannelConfig (TSD_ChannelConfig *result, bool local=false) override
void	fillChannelConfig (void channelConfig, int size, uint8_t configType) override
virtual void	setRGBW (int red, int green, int blue, int colorBrightness, int whiteBrightness, bool toggle=false, bool instant=false)
virtual void	setRGBCCT (int red, int green, int blue, int colorBrightness, int whiteBrightness, int whiteTemperature, bool toggle=false, bool instant=false)
int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue) override
	Handles "new value" request from server.
virtual void	turnOn ()
virtual void	turnOff ()
virtual void	toggle ()
bool	isOn ()
bool	isOnW ()
bool	isOnRGB ()
void	handleAction (int event, int action) override
void	setStep (int step)
void	setDefaultDimmedBrightness (int dimmedBrightness)
void	setFadeEffectTime (int timeMs)
void	setMinIterationBrightness (uint8_t minBright)
void	setMinMaxIterationDelay (uint16_t delayMs)
void	iterateAlways () override
	Method called on each SuplaDevice iteration.
void	onFastTimer () override
	Method called on fast timer interupt.
void	onLoadState () override
	Second method called on element in SuplaDevice.begin().
void	onSaveState () override
	Method called periodically during SuplaDevice iteration.
bool	isStateStorageMigrationNeeded () const override
	Method called after onInit() to check if state storage migration is needed.
void	convertStorageFromLegacyChannel (LegacyChannelFunction channelFunction)
	Enables storage conversion from legacy channel function to new.
void	setSkipLegacyMigration ()
	Disables storage conversion from legacy channel function to new.
void	attach (Supla::Control::Button *)
void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value) override
	Fills TSD_SuplaChannelNewValue based on current state.
virtual LightingPwmBase &	setDefaultStateOn ()
virtual LightingPwmBase &	setDefaultStateOff ()
virtual LightingPwmBase &	setDefaultStateRestore ()
LightingPwmBase &	setBrightnessRatioLimits (float min, float max)
LightingPwmBase &	setColorBrightnessRatioLimits (float min, float max)
void	setBrightnessAdjuster (BrightnessAdjuster *adjuster)
int	getCurrentDimmerBrightness () const
int	getCurrentRGBBrightness () const
void	setMaxHwValue (int newMaxHwValue)
void	setMinPwmFrequency (uint16_t minPwmFrequency)
	Sets minimum PWM frequency.
void	setMaxPwmFrequency (uint16_t maxPwmFrequency)
	Sets maximum PWM frequency.
void	setPwmFrequency (uint16_t pwmFrequency)
	Sets PWM frequency and applies validation.
void	setStepPwmFrequency (uint16_t stepPwmFrequency)
	Sets PWM frequency step.
uint16_t	getMinPwmFrequency () const
	Returns minimum PWM frequency.
uint16_t	getMaxPwmFrequency () const
	Returns maximum PWM frequency.
uint16_t	getPwmFrequency () const
	Returns current PWM frequency.
uint16_t	getStepPwmFrequency () const
	Returns PWM frequency step.
bool	hasParent () const
	Checks if this instance has parent.
int	getAncestorCount () const
	Returns number of ancestor instances (by parent).
Public Member Functions inherited from Supla::ChannelElement
	ChannelElement (int channelNumber=-1)
Channel *	getChannel () override
const Channel *	getChannel () const override
	Returns pointer to main channel.
Public Member Functions inherited from Supla::ElementWithChannelActions
void	addAction (uint16_t action, ActionHandler &client, uint16_t event, bool alwaysEnabled=false) override
void	addAction (uint16_t action, ActionHandler *client, uint16_t event, bool alwaysEnabled=false) override
virtual void	addAction (uint16_t action, ActionHandler &client, Supla::Condition *condition, bool alwaysEnabled=false)
virtual void	addAction (uint16_t action, ActionHandler client, Supla::Condition condition, bool alwaysEnabled=false)
bool	isEventAlreadyUsed (uint16_t event, bool ignoreAlwaysEnabled) override
void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc) override
	Method called each time when device successfully registers to Supla server.
bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.
void	handleChannelConfigFinished () override
	Handles "channel config finished" message from server.
uint8_t	handleChannelConfig (TSD_ChannelConfig *result, bool local) override
	Handles "set channel config" request from server.
void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result) override
	Handles "set channel config" reply from server.
void	runAction (uint16_t event) const override
bool	isAnyUpdatePending () const override
	Returns true if any update is pending.
void	triggerSetChannelConfig (int configType=SUPLA_CONFIG_TYPE_DEFAULT)
Public Member Functions inherited from Supla::Element
Element *	next ()
	Returns next Element from the list.
virtual bool	iterateConnected (void *ptr)
	deprecated
virtual void	onTimer ()
	Method called on timer interupt.
virtual void	onSoftReset ()
	Method called when device soft restart is triggered.
virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.
virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.
virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.
virtual uint8_t	handleWeeklySchedule (TSD_ChannelConfig *newWeeklySchedule, bool altSchedule=false, bool local=false)
	Handles "set channel config" with "weekly schedule" type request from server.
int	getChannelNumber () const
	Returns channel number.
int	getSecondaryChannelNumber () const
	Returns secondary channel number.
virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.
virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.
virtual Channel *	getSecondaryChannel ()
virtual void	generateKey (char output, const char key) const
	Generates key used for Config.
Element &	disableChannelState ()
	Disables channel state (i) function.
bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.
void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.
bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.
bool	setFunction (uint32_t newFunction)
	Sets channel's function.
virtual void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction)
	Called when channel function changes.
Public Member Functions inherited from Supla::LocalAction
virtual ActionHandlerClient *	getHandlerForFirstClient (uint16_t event)
virtual ActionHandlerClient *	getHandlerForClient (ActionHandler *client, uint16_t event)
virtual void	disableOtherClients (const ActionHandler &client, uint16_t event)
virtual void	enableOtherClients (const ActionHandler &client, uint16_t event)
virtual void	disableOtherClients (const ActionHandler *client, uint16_t event)
virtual void	enableOtherClients (const ActionHandler *client, uint16_t event)
virtual void	disableAction (int32_t action, ActionHandler *client, int32_t event)
virtual void	enableAction (int32_t action, ActionHandler *client, int32_t event)
virtual bool	disableActionsInConfigMode ()
Public Member Functions inherited from Supla::ActionHandler
virtual void	activateAction (int action)
virtual bool	deleteClient ()
virtual ActionHandler *	getRealClient ()

Static Public Attributes
static constexpr int	kMaxOutputs = 5

Protected Member Functions
void	applyPwmFrequencyToOutputs ()
void	applyDefaultChannelFunctions ()
int	getConfiguredOutputsCount () const
Protected Member Functions inherited from Supla::Control::LightingPwmBase
int	getMissingGpioCount () const
	Returns number of GPIO pins that are required to control this channel.
void	enableChannel ()
void	disableChannel ()
void	updateEnabledState ()
uint8_t	addWithLimit (int value, int addition, int limit=255)
virtual void	iterateDimmerRGBW (int rgbStep, int wStep)
int	adjustBrightness (int value)
int	getStep (int step, int target, int current) const
bool	calculateAndUpdate (int targetValue, int16_t hwValue, int distance, uint32_t lastChangeMs, const uint32_t now) const
Protected Member Functions inherited from Supla::ElementWithChannelActions
virtual bool	setAndSaveFunction (uint32_t channelFunction)
virtual bool	loadFunctionFromConfig ()
virtual bool	saveConfigChangeFlag () const
virtual bool	loadConfigChangeFlag ()
void	clearChannelConfigChangedFlag ()
bool	iterateConfigExchange ()
int	getNextConfigType () const
	Returns the next config type to be sent.

Protected Attributes
OutputState	outputs [kMaxOutputs]
int	tryCounter = 0
LightingPwmLeds *	parentPwm = nullptr
Protected Attributes inherited from Supla::Control::LightingPwmBase
struct Supla::Control::LightingPwmBase::RequestedState	requested
struct Supla::Control::LightingPwmBase::LastNonZeroState	lastNonZero
struct Supla::Control::LightingPwmBase::HardwareState	hardware
struct Supla::Control::LightingPwmBase::TimingState	timing
uint8_t	buttonStep = 10
uint8_t	defaultDimmedBrightness = 20
bool	dimIterationDirection = false
bool	resetDisance = false
bool	instant = false
bool	enabled = true
bool	initDone = false
bool	skipLegacyMigration = false
int8_t	stateOnInit = RGBW_STATE_ON_INIT_RESTORE
uint8_t	minIterationBrightness = 1
uint8_t	maxTotalHwPower = 100
uint8_t	usedChannels = 0
LegacyChannelFunction	legacyChannelFunction = LegacyChannelFunction::None
enum ButtonControlType	buttonControlType = BUTTON_FOR_RGBW
enum AutoIterateMode	autoIterateMode = AutoIterateMode::OFF
uint16_t	maxHwValue = 1023
float	minBrightnessRatio = 0.0f
float	maxBrightnessRatio = 1.0f
float	minColorBrightnessRatio = 0.0f
float	maxColorBrightnessRatio = 1.0f
uint16_t	minMaxIterationDelay = 750
uint16_t	fadeEffect = 500
uint16_t	minPwmFrequency = 100
uint16_t	maxPwmFrequency = 9000
uint16_t	pwmFrequency = 500
uint16_t	stepPwmFrequency = 1
uint32_t	previousChannelFunction = 0
float	warmWhiteGain = 1.0
float	coldWhiteGain = 1.0
BrightnessAdjuster *	brightnessAdjuster = nullptr
Supla::Control::Button *	attachedButton = nullptr
LightingPwmBase *	parent = nullptr
Protected Attributes inherited from Supla::ChannelElement
Channel	channel
Protected Attributes inherited from Supla::ElementWithChannelActions
Supla::ChannelConfigState	channelConfigState
uint8_t	setChannelConfigAttempts = 0
ConfigTypesBitmap	usedConfigTypes
ConfigTypesBitmap	receivedConfigTypes
Protected Attributes inherited from Supla::Element
Element *	nextPtr = nullptr

Additional Inherited Members
Public Types inherited from Supla::Control::LightingPwmBase
enum	ButtonControlType : uint8_t { BUTTON_FOR_RGBW , BUTTON_FOR_RGB , BUTTON_FOR_W , BUTTON_NOT_USED }
enum class	AutoIterateMode : uint8_t { OFF , DIMMER , RGB , ALL }
enum class	LegacyChannelFunction : uint8_t { None , RGBW , RGB , Dimmer }
Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order).
static Element *	last ()
	Returns last Element (based on creation order).
static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.
static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.
static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.
static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.
static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.
static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.
Static Public Member Functions inherited from Supla::LocalAction
static void	DeleteActionsHandledBy (const ActionHandler *client)
static void	DeleteActionsTriggeredBy (const LocalAction *action)
static void	NullifyActionsHandledBy (const ActionHandler *client)
static ActionHandlerClient *	getClientListPtr ()
Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr
static bool	invalidatePtr = false

Member Function Documentation

◆ onInit()

void Supla::Control::LightingPwmLeds::onInit ( )

overridevirtual

Third method called on element in SuplaDevice.begin().

Method called during SuplaDevice initialization. I.e. load initial state, initialize pins etc.

Reimplemented from Supla::Control::LightingPwmBase.

◆ onLoadConfig()

void Supla::Control::LightingPwmLeds::onLoadConfig ( SuplaDeviceClass * sdc )

overridevirtual

First method called on element in SuplaDevice.begin().

Called only if Config Storage class is configured. Element should read its configration in this method.

Parameters

sdc

Reimplemented from Supla::Control::LightingPwmBase.

◆ setRGBCCTValueOnDevice()

void Supla::Control::LightingPwmLeds::setRGBCCTValueOnDevice	(	uint32_t	output[5],
		int	usedOutputs )

overridevirtual

Implements Supla::Control::LightingPwmBase.

The documentation for this class was generated from the following files:

src/supla/control/lighting_pwm_leds.h
src/supla/control/lighting_pwm_leds.cpp

Classes

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ onInit()

◆ onLoadConfig()

◆ setRGBCCTValueOnDevice()
