Supla::Io::MCP23017 Class Reference

Inheritance diagram for Supla::Io::MCP23017:

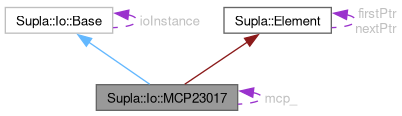

Collaboration diagram for Supla::Io::MCP23017:

Public Member Functions
	MCP23017 (uint8_t address=0x20, Supla::Mutex *mutex=nullptr, TwoWire *wire=&Wire, bool pullUp=false)
void	onInit ()
	Third method called on element in SuplaDevice.begin().
void	customPinMode (int channelNumber, uint8_t pin, uint8_t mode) override
void	customDigitalWrite (int channelNumber, uint8_t pin, uint8_t val) override
int	customDigitalRead (int channelNumber, uint8_t pin) override
unsigned int	customPulseIn (int channelNumber, uint8_t pin, uint8_t value, uint64_t timeoutMicro) override
void	customAnalogWrite (int channelNumber, uint8_t pin, int val) override
int	customAnalogRead (int channelNumber, uint8_t pin) override
void	onTimer () override
	Method called on timer interupt.
void	read16FromMCP ()
void	write16ToMCP ()
Public Member Functions inherited from Supla::Io::Base
virtual bool	isReady () const
virtual void	customSetPwmResolutionBits (uint8_t pin, uint8_t resolutionBits)
virtual void	customConfigureAnalogOutput (int channelNumber, uint8_t pin, bool outputInvert=false)
virtual void	customSetPwmFrequency (uint16_t pwmFrequency)
virtual uint8_t	customDefaultPwmResolutionBits (uint8_t pin) const
virtual bool	customCanSetPwmResolutionBits (uint8_t pin) const
virtual uint8_t	customPwmResolutionBits (uint8_t pin) const
virtual uint32_t	customPwmMaxValue (uint8_t pin) const
virtual uint16_t	customPwmFrequency () const
virtual void	customAttachInterrupt (uint8_t pin, void(*func)(void), int mode)
virtual void	customDetachInterrupt (uint8_t pin)
virtual uint8_t	customPinToInterrupt (uint8_t pin)

Protected Attributes
::MCP23017	mcp_
uint16_t	outState_ = 0
uint16_t	inState_ = 0
uint16_t	lastOutState_ = 0
Supla::Mutex *	mutex_ = nullptr

Member Function Documentation

customAnalogRead()

int Supla::Io::MCP23017::customAnalogRead ( int channelNumber, uint8_t pin )

inlineoverridevirtual

Reimplemented from Supla::Io::Base.

customAnalogWrite()

void Supla::Io::MCP23017::customAnalogWrite ( int channelNumber, uint8_t pin, int val )

inlineoverridevirtual

Reimplemented from Supla::Io::Base.

customDigitalRead()

int Supla::Io::MCP23017::customDigitalRead ( int channelNumber, uint8_t pin )

inlineoverridevirtual

Reimplemented from Supla::Io::Base.

customDigitalWrite()

void Supla::Io::MCP23017::customDigitalWrite ( int channelNumber, uint8_t pin, uint8_t val )

inlineoverridevirtual

Reimplemented from Supla::Io::Base.

customPinMode()

void Supla::Io::MCP23017::customPinMode ( int channelNumber, uint8_t pin, uint8_t mode )

inlineoverridevirtual

Reimplemented from Supla::Io::Base.

customPulseIn()

unsigned int Supla::Io::MCP23017::customPulseIn ( int channelNumber, uint8_t pin, uint8_t value, uint64_t timeoutMicro )

inlineoverridevirtual

Reimplemented from Supla::Io::Base.

onInit()

void Supla::Io::MCP23017::onInit ( )

inlinevirtual

Third method called on element in SuplaDevice.begin().

Method called during SuplaDevice initialization. I.e. load initial state, initialize pins etc.

Reimplemented from Supla::Element.

onTimer()

void Supla::Io::MCP23017::onTimer ( )

inlineoverridevirtual

Method called on timer interupt.

It should provide all actions that have to be executed periodically regardless of other SuplaDevice activities. It is usually called every 10 ms.

Reimplemented from Supla::Element.

---

The documentation for this class was generated from the following file:

• src/supla/io/MCP23017.h
