Inheritance diagram for Supla::Control::RelayRollerShutterPair:

[legend]

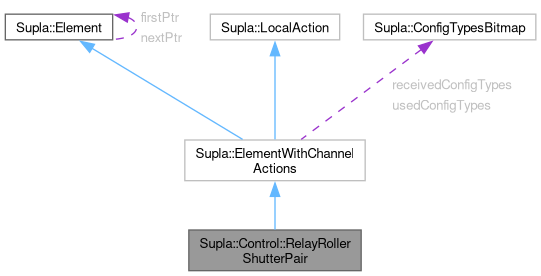

Collaboration diagram for Supla::Control::RelayRollerShutterPair:

[legend]

Public Member Functions
	RelayRollerShutterPair (Supla::Io::IoPin output0, Supla::Io::IoPin output1, bool tiltFunctionsEnabled=true, _supla_int_t relayFunctions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

	RelayRollerShutterPair (Supla::Io::Base *io, int output0, int output1, bool highIsOn=true, bool tiltFunctionsEnabled=true, _supla_int_t relayFunctions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

	RelayRollerShutterPair (int output0, int output1, bool highIsOn=true, bool tiltFunctionsEnabled=true, _supla_int_t relayFunctions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

void	attach (Button primaryButton, Button secondaryButton, bool asInternal=true)

void	attach (Button primaryButton, Button secondaryButton, ActionTrigger primaryActionTrigger, ActionTrigger secondaryActionTrigger, bool asInternal=true)

void	attach (Button *button, bool primaryOrUp, bool asInternal=true)

void	attach (Button button, ActionTrigger actionTrigger, bool primaryOrUp, bool asInternal=true)

Channel *	getChannel () override

const Channel *	getChannel () const override
	Returns pointer to main channel.

Channel *	getSecondaryChannel () override

const Channel *	getSecondaryChannel () const override
	Returns pointer to secondary channel.

bool	isInRelayMode () const

bool	isInRollerShutterMode () const

RelayRollerShutterPair &	setDefaultStateOn ()

RelayRollerShutterPair &	setDefaultStateOff ()

RelayRollerShutterPair &	setDefaultStateRestore ()

RelayRollerShutterPair &	setPreloadStateOnSoftReset (bool enabled=true)

RelayRollerShutterPair &	setWeeklyScheduleAvailable (bool available=true)

bool	setDefaultFunctions (uint32_t primaryFunction, uint32_t secondaryFunction)

bool	setRuntimeFunctions (uint32_t primaryFunction, uint32_t secondaryFunction)

Relay *	getPrimaryRelay ()

const Relay *	getPrimaryRelay () const

Relay *	getSecondaryRelay ()

const Relay *	getSecondaryRelay () const

RollerShutter *	getRollerShutter ()

const RollerShutter *	getRollerShutter () const

int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *value) override
	Handles "new value" request from server.

void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value) override
	Fills TSD_SuplaChannelNewValue based on current state.

bool	getRemainingCountdownTimerSec (uint32_t *remainingSec) const override
	Returns active countdown timer remaining time in seconds.

uint8_t	handleChannelConfig (TSD_ChannelConfig *config, bool local=false) override
	Handles "set channel config" request from server.

uint8_t	handleWeeklySchedule (TSD_ChannelConfig *config, bool altSchedule, bool local) override
	Handles "set channel config" with "weekly schedule" type request from server.

void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result) override
	Handles "set channel config" reply from server.

void	handleChannelConfigFinished () override
	Handles "channel config finished" message from server.

void	handleChannelConfigFinished (int channelNumber) override
	Handles "channel config finished" for a specific channel.

int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request) override
	Handles CALCFG requests from server.

uint32_t	getCalcfgPendingTimeoutMs (TSD_DeviceCalCfgRequest *request) const override
	Returns timeout in milliseconds for CALCFG requests that become pending.

void	onLoadConfig (SuplaDeviceClass *sdc) override
	First method called on element in SuplaDevice.begin().

void	purgeConfig () override
	Removes all configration data related to the element from Storage::Config.

void	onLoadState () override
	Second method called on element in SuplaDevice.begin().

void	onSaveState () override
	Method called periodically during SuplaDevice iteration.

void	onInit () override
	Third method called on element in SuplaDevice.begin()

void	iterateAlways () override
	Method called on each SuplaDevice iteration.

bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

void	onTimer () override
	Method called on timer interupt.

void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction) override
	Called when channel function changes.

ApplyConfigResult	applyChannelConfig (TSD_ChannelConfig *config, bool local=false) override

void	fillChannelConfig (void channelConfig, int size, uint8_t configType) override

Public Member Functions inherited from Supla::ElementWithChannelActions
	ElementWithChannelActions (ElementMode mode=ElementMode::Registered)

void	addAction (uint16_t action, ActionHandler &client, uint16_t event, bool alwaysEnabled=false) override

void	addAction (uint16_t action, ActionHandler *client, uint16_t event, bool alwaysEnabled=false) override

virtual void	addAction (uint16_t action, ActionHandler &client, uint16_t event, Supla::Condition *condition, bool alwaysEnabled=false)
	Adds a conditional local action for a specific event.

virtual void	addAction (uint16_t action, ActionHandler client, uint16_t event, Supla::Condition condition, bool alwaysEnabled=false)
	Pointer variant of addAction(action, client, event, condition).

virtual void	addAction (uint16_t action, ActionHandler &client, Supla::Condition *condition, bool alwaysEnabled=false)

virtual void	addAction (uint16_t action, ActionHandler client, Supla::Condition condition, bool alwaysEnabled=false)

bool	isEventAlreadyUsed (uint16_t event, bool ignoreAlwaysEnabled) override

void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc) override
	Method called each time when device successfully registers to Supla server.

void	runAction (uint16_t event) const override

void	runAction (uint16_t event, const ActionAllowList &allowOnlyActions) const override

bool	isAnyUpdatePending () const override
	Returns true if any update is pending.

void	triggerSetChannelConfig (int configType=SUPLA_CONFIG_TYPE_DEFAULT, bool localChange=false)

virtual bool	iterateConnected (void *ptr)
	deprecated

Public Member Functions inherited from Supla::Element
	Element (ElementMode mode=ElementMode::Registered)

virtual Control::ActionTrigger *	getActionTrigger ()

Element *	next ()
	Returns next Element from the list.

virtual bool	isStateStorageMigrationNeeded () const
	Method called after onInit() to check if state storage migration is needed.

virtual void	onFastTimer ()
	Method called on fast timer interupt.

virtual void	onSoftReset ()
	Method called when device soft restart is triggered.

virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.

virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.

int	getChannelNumber () const
	Returns channel number.

int	getSecondaryChannelNumber () const
	Returns secondary channel number.

virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.

const Channel *	getChannelByChannelNumber (int channelNumber) const
	Returns pointer to the channel matching channelNumber.

Channel *	getChannelByChannelNumber (int channelNumber)

virtual void	generateKey (char output, const char key) const
	Generates key used for Config.

Element &	disableChannelState ()
	Disables channel state (i) function.

bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.

void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.

bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.

bool	setFunction (uint32_t newFunction)
	Sets channel's function.

Public Member Functions inherited from Supla::LocalAction
virtual bool	hasEnabledAction (uint16_t event, uint16_t action) const

virtual ActionHandlerClient *	getHandlerForFirstClient (uint16_t event)

virtual ActionHandlerClient *	getHandlerForClient (ActionHandler *client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	disableAction (int32_t action, ActionHandler *client, int32_t event)

virtual void	enableAction (int32_t action, ActionHandler *client, int32_t event)

virtual bool	disableActionsInConfigMode ()

Protected Member Functions
bool	setRuntimeFunction (uint32_t channelFunction) override
	Sets channel's function at runtime.

bool	setAndSaveFunction (uint32_t channelFunction) override

Protected Member Functions inherited from Supla::ElementWithChannelActions
virtual bool	loadFunctionFromConfig ()

virtual bool	shouldProcessChannelFunctionFromConfig () const

bool	setAndSaveConfigChangeFlag (bool value)

virtual bool	saveConfigChangeFlag () const

virtual bool	loadConfigChangeFlag ()

void	clearChannelConfigChangedFlag ()

void	markChannelConfigReceived (int configType)

void	markAllChannelConfigsReceived ()

bool	isChannelConfigFinishedReceived () const

bool	isLocalChannelConfigChangePending (int configType) const

bool	iterateConfigExchange ()

int	getNextConfigType () const
	Returns the next config type to be sent.

int	getNextLocalConfigType () const

bool	setLocalConfigChange (int configType, bool value=true)

void	clearLocalConfigChanges (int configType, int secondConfigType=-1)

uint8_t	getUsedLocalConfigTypes () const

Additional Inherited Members
Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order)

static Element *	last ()
	Returns last Element (based on creation order)

static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.

static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.

static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.

static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.

static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.

static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.

Static Public Member Functions inherited from Supla::LocalAction
static void	DeleteActionsHandledBy (const ActionHandler *client)

static void	DeleteActionsHandledByExcept (const ActionHandler *client, const ActionAllowList &preservedActions)

static void	DeleteActionsTriggeredBy (const LocalAction *action)

static void	DeleteAction (const LocalAction trigger, const ActionHandler client, uint16_t event, uint16_t action)

static void	NullifyActionsHandledBy (const ActionHandler *client)

static ActionHandlerClient *	getClientListPtr ()

Protected Attributes inherited from Supla::ElementWithChannelActions
ChannelConfigState	channelConfigState: 4

uint8_t	setChannelConfigAttempts: 2

uint8_t	configFinishedReceived: 1

uint8_t	reserved: 1

ConfigTypesBitmap	locallyChangedConfigTypes

ConfigTypesBitmap	usedConfigTypes

ConfigTypesBitmap	receivedConfigTypes

Protected Attributes inherited from Supla::Element
bool	registeredElement = true

Element *	nextPtr = nullptr

Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr

static bool	invalidatePtr = false

Member Function Documentation

◆ applyChannelConfig()

ApplyConfigResult Supla::Control::RelayRollerShutterPair::applyChannelConfig	(	TSD_ChannelConfig *	config,
		bool	local = false )

overridevirtual

Reimplemented from Supla::ElementWithChannelActions.

◆ fillChannelConfig()

void Supla::Control::RelayRollerShutterPair::fillChannelConfig	(	void *	channelConfig,
		int *	size,
		uint8_t	configType )

overridevirtual

Reimplemented from Supla::ElementWithChannelActions.

◆ fillSuplaChannelNewValue()

void Supla::Control::RelayRollerShutterPair::fillSuplaChannelNewValue ( TSD_SuplaChannelNewValue * value )

overridevirtual

Fills TSD_SuplaChannelNewValue based on current state.

Parameters

value pointer to TSD_SuplaChannelNewValue which should be filled

Reimplemented from Supla::Element.

◆ getCalcfgPendingTimeoutMs()

uint32_t Supla::Control::RelayRollerShutterPair::getCalcfgPendingTimeoutMs ( TSD_DeviceCalCfgRequest * request ) const

overridevirtual

Returns timeout in milliseconds for CALCFG requests that become pending.

Zero means no timeout.

Reimplemented from Supla::Element.

◆ getChannel() [1/2]

const Channel * Supla::Control::RelayRollerShutterPair::getChannel ( ) const

overridevirtual

Returns pointer to main channel.

Returns: pointer to main channel, nullptr if element has no channel

Reimplemented from Supla::Element.

◆ getChannel() [2/2]

Channel * Supla::Control::RelayRollerShutterPair::getChannel ( )

overridevirtual

Reimplemented from Supla::Element.

◆ getRemainingCountdownTimerSec()

bool Supla::Control::RelayRollerShutterPair::getRemainingCountdownTimerSec ( uint32_t * remainingSec ) const

overridevirtual

Returns active countdown timer remaining time in seconds.

Parameters

remainingSec output pointer for remaining seconds. It is set to 0 when the countdown timer is not available or inactive.

Returns: true when remainingSec contains a valid active timer value, false otherwise.

Reimplemented from Supla::Element.

◆ getSecondaryChannel() [1/2]

const Channel * Supla::Control::RelayRollerShutterPair::getSecondaryChannel ( ) const

overridevirtual

Returns pointer to secondary channel.

Returns: pointer to secondary channel, nullptr if element has no secondary channel

Reimplemented from Supla::Element.

◆ getSecondaryChannel() [2/2]

Channel * Supla::Control::RelayRollerShutterPair::getSecondaryChannel ( )

overridevirtual

Reimplemented from Supla::Element.

◆ handleCalcfgFromServer()

int Supla::Control::RelayRollerShutterPair::handleCalcfgFromServer ( TSD_DeviceCalCfgRequest * request )

overridevirtual

Handles CALCFG requests from server.

Parameters

request

Returns: SUPLA_CALCFG_RESULT_* (see proto.h)

Reimplemented from Supla::Element.

◆ handleChannelConfig()

uint8_t Supla::Control::RelayRollerShutterPair::handleChannelConfig	(	TSD_ChannelConfig *	newChannelConfig,
		bool	local = false )

overridevirtual

Handles "set channel config" request from server.

Parameters

newChannelConfig	pointer to new channel configuration
local	true if request is local (issued by device itself), false when requests originates from server.

Returns: SUPLA_RESULTCODE_* (see proto.h)

Reimplemented from Supla::ElementWithChannelActions.

◆ handleChannelConfigFinished() [1/2]

void Supla::Control::RelayRollerShutterPair::handleChannelConfigFinished ( )

overridevirtual

Handles "channel config finished" message from server.

This message informs device that server finished sending channel config for this element.

Reimplemented from Supla::ElementWithChannelActions.

◆ handleChannelConfigFinished() [2/2]

void Supla::Control::RelayRollerShutterPair::handleChannelConfigFinished ( int channelNumber )

overridevirtual

Handles "channel config finished" for a specific channel.

The default implementation forwards the event to the primary channel handler only when the channel belongs to this element.

Reimplemented from Supla::ElementWithChannelActions.

◆ handleNewValueFromServer()

int32_t Supla::Control::RelayRollerShutterPair::handleNewValueFromServer ( TSD_SuplaChannelNewValue * newValue )

overridevirtual

Handles "new value" request from server.

Parameters

newValue pointer to TSD_SuplaChannelNewValue

Returns: -1 - don't send reply to server 0 - success==false 1 - success==true

Reimplemented from Supla::Element.

◆ handleSetChannelConfigResult()

void Supla::Control::RelayRollerShutterPair::handleSetChannelConfigResult ( TSDS_SetChannelConfigResult * result )

overridevirtual

Handles "set channel config" reply from server.

All types of channel config should be handled here (including weekly schedule, default config, etc).

Parameters

result

Reimplemented from Supla::ElementWithChannelActions.

◆ handleWeeklySchedule()

uint8_t Supla::Control::RelayRollerShutterPair::handleWeeklySchedule	(	TSD_ChannelConfig *	newWeeklySchedule,
		bool	altSchedule,
		bool	local )

overridevirtual

Handles "set channel config" with "weekly schedule" type request from server.

Parameters

newWeeklySchedule	pointer to new weekly schedule
altSchedule	true if request is for alternative schedule (for cooling)
local	true if request is local (issued by device itself), false when requests originates from server.

Returns: SUPLA_RESULTCODE_* (see proto.h)

Reimplemented from Supla::ElementWithChannelActions.

◆ iterateAlways()

void Supla::Control::RelayRollerShutterPair::iterateAlways ( )

overridevirtual

Method called on each SuplaDevice iteration.

It should provide all actions that have to be executed periodically regardless of network state.

Reimplemented from Supla::Element.

◆ iterateConnected()

bool Supla::Control::RelayRollerShutterPair::iterateConnected ( )

overridevirtual

Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

Returns: true when element didn't communicate with server and next element should be iterated instead. false otherwise.

Reimplemented from Supla::ElementWithChannelActions.

◆ onFunctionChange()

void Supla::Control::RelayRollerShutterPair::onFunctionChange	(	uint32_t	currentFunction,
		uint32_t	newFunction )

overridevirtual

Called when channel function changes.

Parameters

currentFunction	old function
newFunction	new function

Reimplemented from Supla::Element.

◆ onInit()

void Supla::Control::RelayRollerShutterPair::onInit ( )

overridevirtual

Third method called on element in SuplaDevice.begin()

Method called during SuplaDevice initialization. I.e. load initial state, initialize pins etc.

Reimplemented from Supla::Element.

◆ onLoadConfig()

void Supla::Control::RelayRollerShutterPair::onLoadConfig ( SuplaDeviceClass * sdc )

overridevirtual

First method called on element in SuplaDevice.begin().

Called only if Config Storage class is configured. Element should read its configration in this method.

Parameters

sdc

Reimplemented from Supla::Element.

◆ onLoadState()

void Supla::Control::RelayRollerShutterPair::onLoadState ( )

overridevirtual

Second method called on element in SuplaDevice.begin().

Method called during state Storage initialization (i.e. read from EEPROM, FRAM). Called only if Storage class is configured.

Reimplemented from Supla::Element.

◆ onSaveState()

void Supla::Control::RelayRollerShutterPair::onSaveState ( )

overridevirtual

Method called periodically during SuplaDevice iteration.

It should provide state saving for this elemnet to Storage

Reimplemented from Supla::Element.

◆ onTimer()

void Supla::Control::RelayRollerShutterPair::onTimer ( )

overridevirtual

Method called on timer interupt.

It should provide all actions that have to be executed periodically regardless of other SuplaDevice activities. It is usually called every 10 ms.

Reimplemented from Supla::Element.

◆ purgeConfig()

void Supla::Control::RelayRollerShutterPair::purgeConfig ( )

overridevirtual

Removes all configration data related to the element from Storage::Config.

Reimplemented from Supla::ElementWithChannelActions.

◆ setAndSaveFunction()

bool Supla::Control::RelayRollerShutterPair::setAndSaveFunction ( uint32_t channelFunction )

overrideprotectedvirtual

Reimplemented from Supla::ElementWithChannelActions.

◆ setRuntimeFunction()

bool Supla::Control::RelayRollerShutterPair::setRuntimeFunction ( uint32_t newFunction )

overrideprotectedvirtual

Sets channel's function at runtime.

Elements which require additional runtime setup after a function change should override this method. The default implementation calls setFunction().

Parameters

newFunction

Returns: true if function was changed, false otherwise

Reimplemented from Supla::Element.

The documentation for this class was generated from the following files:

src/supla/control/relay_roller_shutter_pair.h
src/supla/control/relay_roller_shutter_pair.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Member Function Documentation

◆ applyChannelConfig()

◆ fillChannelConfig()

◆ fillSuplaChannelNewValue()

◆ getCalcfgPendingTimeoutMs()

◆ getChannel() [1/2]

◆ getChannel() [2/2]

◆ getRemainingCountdownTimerSec()

◆ getSecondaryChannel() [1/2]

◆ getSecondaryChannel() [2/2]

◆ handleCalcfgFromServer()

◆ handleChannelConfig()

◆ handleChannelConfigFinished() [1/2]

◆ handleChannelConfigFinished() [2/2]

◆ handleNewValueFromServer()

◆ handleSetChannelConfigResult()

◆ handleWeeklySchedule()

◆ iterateAlways()

◆ iterateConnected()

◆ onFunctionChange()

◆ onInit()

◆ onLoadConfig()

◆ onLoadState()

◆ onSaveState()

◆ onTimer()

◆ purgeConfig()

◆ setAndSaveFunction()

◆ setRuntimeFunction()
