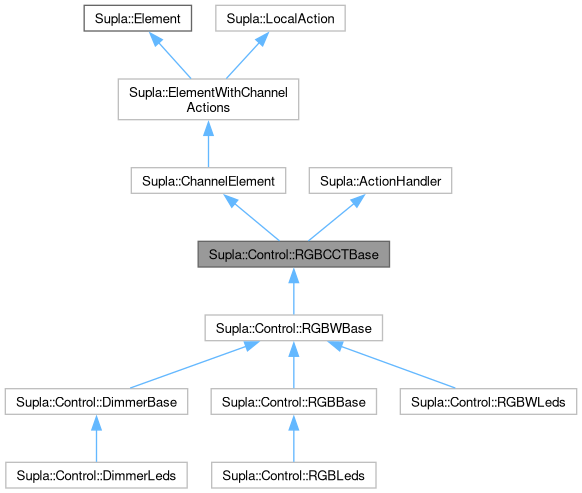

Inheritance diagram for Supla::Control::RGBCCTBase:

[legend]

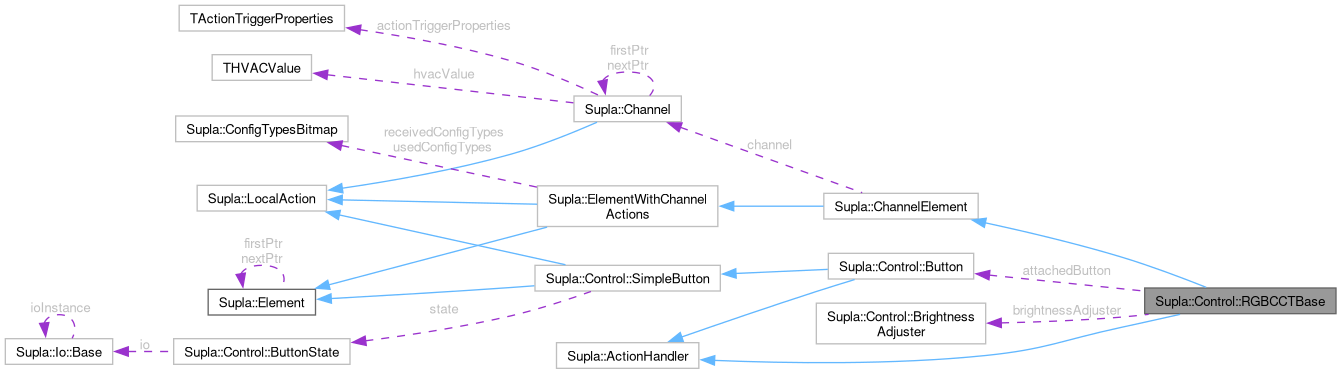

Collaboration diagram for Supla::Control::RGBCCTBase:

[legend]

Public Types
enum	ButtonControlType : uint8_t { BUTTON_FOR_RGBW , BUTTON_FOR_RGB , BUTTON_FOR_W , BUTTON_NOT_USED }

enum class	AutoIterateMode : uint8_t { OFF , DIMMER , RGB , ALL }

enum class	LegacyChannelFunction : uint8_t { None , RGBW , RGB , Dimmer }

Public Member Functions
	RGBCCTBase (RGBCCTBase *parent=nullptr)
	Constructor.

void	purgeConfig () override
	Removes all configration data related to the element from Storage::Config.

Supla::ApplyConfigResult	applyChannelConfig (TSD_ChannelConfig *result, bool local=false) override

void	fillChannelConfig (void channelConfig, int size, uint8_t configType) override

virtual void	setRGBCCTValueOnDevice (uint32_t red, uint32_t green, uint32_t blue, uint32_t colorBrightness, uint32_t white1Brightness, uint32_t white2Brightness)=0

virtual void	setRGBW (int red, int green, int blue, int colorBrightness, int whiteBrightness, bool toggle=false, bool instant=false)

virtual void	setRGBCCT (int red, int green, int blue, int colorBrightness, int whiteBrightness, int whiteTemperature, bool toggle=false, bool instant=false)

int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue) override
	Handles "new value" request from server.

virtual void	turnOn ()

virtual void	turnOff ()

virtual void	toggle ()

bool	isOn ()

bool	isOnW ()

bool	isOnRGB ()

void	handleAction (int event, int action) override

void	setStep (int step)

void	setDefaultDimmedBrightness (int dimmedBrightness)

void	setFadeEffectTime (int timeMs)

void	setMinIterationBrightness (uint8_t minBright)

void	setMinMaxIterationDelay (uint16_t delayMs)

void	onInit () override
	Third method called on element in SuplaDevice.begin()

void	iterateAlways () override
	Method called on each SuplaDevice iteration.

void	onFastTimer () override
	Method called on fast timer interupt.

void	onLoadState () override
	Second method called on element in SuplaDevice.begin().

void	onSaveState () override
	Method called periodically during SuplaDevice iteration.

bool	isStateStorageMigrationNeeded () const override
	Method called after onInit() to check if state storage migration is needed.

void	onLoadConfig (SuplaDeviceClass *) override
	First method called on element in SuplaDevice.begin().

void	convertStorageFromLegacyChannel (LegacyChannelFunction channelFunction)
	Enables storage conversion from legacy channel function to new.

void	setSkipLegacyMigration ()
	Disables storage conversion from legacy channel function to new.

void	attach (Supla::Control::Button *)

void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value) override
	Fills TSD_SuplaChannelNewValue based on current state.

virtual RGBCCTBase &	setDefaultStateOn ()

virtual RGBCCTBase &	setDefaultStateOff ()

virtual RGBCCTBase &	setDefaultStateRestore ()

virtual RGBCCTBase &	setBrightnessLimits (int min, int max)

virtual RGBCCTBase &	setColorBrightnessLimits (int min, int max)

void	setBrightnessAdjuster (BrightnessAdjuster *adjuster)

int	getCurrentDimmerBrightness () const

int	getCurrentRGBBrightness () const

void	setMaxHwValue (int newMaxHwValue)

bool	hasParent () const
	Checks if this instance has parent.

int	getAncestorCount () const
	Returns number of ancestor instances (by parent)

Public Member Functions inherited from Supla::ChannelElement
	ChannelElement (int channelNumber=-1)

Channel *	getChannel () override

const Channel *	getChannel () const override
	Returns pointer to main channel.

Public Member Functions inherited from Supla::ElementWithChannelActions
void	addAction (uint16_t action, ActionHandler &client, uint16_t event, bool alwaysEnabled=false) override

void	addAction (uint16_t action, ActionHandler *client, uint16_t event, bool alwaysEnabled=false) override

virtual void	addAction (uint16_t action, ActionHandler &client, Supla::Condition *condition, bool alwaysEnabled=false)

virtual void	addAction (uint16_t action, ActionHandler client, Supla::Condition condition, bool alwaysEnabled=false)

bool	isEventAlreadyUsed (uint16_t event, bool ignoreAlwaysEnabled) override

void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc) override
	Method called each time when device successfully registers to Supla server.

bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

void	handleChannelConfigFinished () override
	Handles "channel config finished" message from server.

uint8_t	handleChannelConfig (TSD_ChannelConfig *result, bool local) override
	Handles "set channel config" request from server.

void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result) override
	Handles "set channel config" reply from server.

void	runAction (uint16_t event) const override

bool	isAnyUpdatePending () const override
	Returns true if any update is pending.

void	triggerSetChannelConfig (int configType=SUPLA_CONFIG_TYPE_DEFAULT)

Public Member Functions inherited from Supla::Element
Element *	next ()
	Returns next Element from the list.

virtual bool	iterateConnected (void *ptr)
	deprecated

virtual void	onTimer ()
	Method called on timer interupt.

virtual void	onSoftReset ()
	Method called when device soft restart is triggered.

virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.

virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.

virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.

virtual uint8_t	handleWeeklySchedule (TSD_ChannelConfig *newWeeklySchedule, bool altSchedule=false, bool local=false)
	Handles "set channel config" with "weekly schedule" type request from server.

int	getChannelNumber () const
	Returns channel number.

int	getSecondaryChannelNumber () const
	Returns secondary channel number.

virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.

virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.

virtual Channel *	getSecondaryChannel ()

virtual void	generateKey (char output, const char key) const
	Generates key used for Config.

Element &	disableChannelState ()
	Disables channel state (i) function.

bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.

void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.

bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.

bool	setFunction (uint32_t newFunction)
	Sets channel's function.

virtual void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction)
	Called when channel function changes.

Public Member Functions inherited from Supla::LocalAction
virtual ActionHandlerClient *	getHandlerForFirstClient (uint16_t event)

virtual ActionHandlerClient *	getHandlerForClient (ActionHandler *client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	disableAction (int32_t action, ActionHandler *client, int32_t event)

virtual void	enableAction (int32_t action, ActionHandler *client, int32_t event)

virtual bool	disableActionsInConfigMode ()

Public Member Functions inherited from Supla::ActionHandler
virtual void	activateAction (int action)

virtual bool	deleteClient ()

virtual ActionHandler *	getRealClient ()

Protected Member Functions
int	getMissingGpioCount () const
	Returns number of GPIO pins that are required to control this channel.

void	enableChannel ()

void	disableChannel ()

uint8_t	addWithLimit (int value, int addition, int limit=255)

virtual void	iterateDimmerRGBW (int rgbStep, int wStep)

int	adjustBrightness (int value)

int	getStep (int step, int target, int current, int distance) const

bool	calculateAndUpdate (int targetValue, uint16_t hwValue, int distance, uint32_t lastChangeMs) const

Protected Member Functions inherited from Supla::ElementWithChannelActions
virtual bool	setAndSaveFunction (uint32_t channelFunction)

virtual bool	loadFunctionFromConfig ()

virtual bool	saveConfigChangeFlag () const

virtual bool	loadConfigChangeFlag ()

void	clearChannelConfigChangedFlag ()

bool	iterateConfigExchange ()

int	getNextConfigType () const
	Returns the next config type to be sent.

Protected Attributes
bool	valueChanged = true

uint8_t	buttonStep = 10

uint8_t	curRed = 0

uint8_t	curGreen = 255

uint8_t	curBlue = 0

uint8_t	curColorBrightness = 0

uint8_t	curWhiteBrightness = 0

uint8_t	curWhiteTemperature = 0

uint8_t	lastColorBrightness = 100

uint8_t	lastWhiteBrightness = 100

uint8_t	defaultDimmedBrightness = 20

bool	dimIterationDirection = false

bool	resetDisance = false

bool	instant = false

bool	enabled = true

bool	initDone = false

bool	skipLegacyMigration = false

int8_t	stateOnInit = RGBW_STATE_ON_INIT_RESTORE

uint8_t	minIterationBrightness = 1

LegacyChannelFunction	legacyChannelFunction = LegacyChannelFunction::None

enum ButtonControlType	buttonControlType = BUTTON_FOR_RGBW

enum AutoIterateMode	autoIterateMode = AutoIterateMode::OFF

uint16_t	maxHwValue = 1023

uint16_t	hwRed = 0

uint16_t	hwGreen = 0

uint16_t	hwBlue = 0

uint16_t	hwColorBrightness = 0

uint16_t	hwBrightness = 0

uint16_t	hwWhiteTemperature = 0

uint16_t	hwWhite1Brightness = 0

uint16_t	hwWhite2Brightness = 0

uint16_t	minBrightness = 1

uint16_t	maxBrightness = 1023

uint16_t	minColorBrightness = 1

uint16_t	maxColorBrightness = 1023

uint16_t	redDistance = 0

uint16_t	greenDistance = 0

uint16_t	blueDistance = 0

uint16_t	colorBrightnessDistance = 0

uint16_t	brightnessDistance = 0

uint16_t	whiteTemperatureDistance = 0

uint16_t	minMaxIterationDelay = 750

uint16_t	fadeEffect = 500

uint32_t	lastTick = 0

uint32_t	lastChangeRedMs = 0

uint32_t	lastChangeGreenMs = 0

uint32_t	lastChangeBlueMs = 0

uint32_t	lastChangeColorBrightnessMs = 0

uint32_t	lastChangeBrightnessMs = 0

uint32_t	lastChangeWhiteTemperatureMs = 0

uint32_t	lastMsgReceivedMs = 0

uint32_t	lastIterateDimmerTimestamp = 0

uint32_t	iterationDelayTimestamp = 0

uint32_t	lastAutoIterateStartTimestamp = 0

float	warmWhiteGain = 1.0

float	coldWhiteGain = 1.0

BrightnessAdjuster *	brightnessAdjuster = nullptr

Supla::Control::Button *	attachedButton = nullptr

RGBCCTBase *	parent = nullptr

Protected Attributes inherited from Supla::ChannelElement
Channel	channel

Protected Attributes inherited from Supla::ElementWithChannelActions
Supla::ChannelConfigState	channelConfigState

uint8_t	setChannelConfigAttempts = 0

ConfigTypesBitmap	usedConfigTypes

ConfigTypesBitmap	receivedConfigTypes

Protected Attributes inherited from Supla::Element
Element *	nextPtr = nullptr

Additional Inherited Members
Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order)

static Element *	last ()
	Returns last Element (based on creation order)

static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.

static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.

static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.

static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.

static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.

static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.

Static Public Member Functions inherited from Supla::LocalAction
static void	DeleteActionsHandledBy (const ActionHandler *client)

static void	DeleteActionsTriggeredBy (const LocalAction *action)

static void	NullifyActionsHandledBy (const ActionHandler *client)

static ActionHandlerClient *	getClientListPtr ()

Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr

static bool	invalidatePtr = false

Constructor & Destructor Documentation

◆ RGBCCTBase()

Supla::Control::RGBCCTBase::RGBCCTBase ( RGBCCTBase * parent = nullptr )

explicit

Constructor.

Parameters

parent parent RGBW object - set to null, for first instance, then remaining instances should be passed one after another in order to properly handle channel disabling based on parent's function.

Member Function Documentation

◆ applyChannelConfig()

ApplyConfigResult Supla::Control::RGBCCTBase::applyChannelConfig	(	TSD_ChannelConfig *	result,
		bool	local = false )

overridevirtual

Reimplemented from Supla::ElementWithChannelActions.

◆ convertStorageFromLegacyChannel()

void Supla::Control::RGBCCTBase::convertStorageFromLegacyChannel ( LegacyChannelFunction channelFunction )

Enables storage conversion from legacy channel function to new.

Parameters

channelFunction None, RGBW, RGB, Dimmer

◆ fillChannelConfig()

void Supla::Control::RGBCCTBase::fillChannelConfig	(	void *	channelConfig,
		int *	size,
		uint8_t	configType )

overridevirtual

Reimplemented from Supla::ElementWithChannelActions.

◆ fillSuplaChannelNewValue()

void Supla::Control::RGBCCTBase::fillSuplaChannelNewValue ( TSD_SuplaChannelNewValue * value )

overridevirtual

Fills TSD_SuplaChannelNewValue based on current state.

Parameters

value pointer to TSD_SuplaChannelNewValue which should be filled

Reimplemented from Supla::Element.

◆ getAncestorCount()

int Supla::Control::RGBCCTBase::getAncestorCount ( ) const

Returns number of ancestor instances (by parent)

Returns: number of ancestor instances

◆ getMissingGpioCount()

int Supla::Control::RGBCCTBase::getMissingGpioCount ( ) const

protected

Returns number of GPIO pins that are required to control this channel.

I.e. RGB channel requires 3 GPIOs, one is given by current RGBCCT object, and remaining 2 are taken from descendant instances. So if descendant instance call this on its parent, it will return 2

Returns: number of GPIO pins that are required by parent object to allow proper operation of it's function

◆ handleAction()

void Supla::Control::RGBCCTBase::handleAction	(	int	event,
		int	action )

overridevirtual

Implements Supla::ActionHandler.

◆ handleNewValueFromServer()

int32_t Supla::Control::RGBCCTBase::handleNewValueFromServer ( TSD_SuplaChannelNewValue * newValue )

overridevirtual

Handles "new value" request from server.

Parameters

newValue pointer to TSD_SuplaChannelNewValue

Returns: -1 - don't send reply to server 0 - success==false 1 - success==true

Reimplemented from Supla::Element.

◆ hasParent()

bool Supla::Control::RGBCCTBase::hasParent ( ) const

Checks if this instance has parent.

Returns: true if this instance has parent

◆ isStateStorageMigrationNeeded()

bool Supla::Control::RGBCCTBase::isStateStorageMigrationNeeded ( ) const

overridevirtual

Method called after onInit() to check if state storage migration is needed.

WARNING: state storage migration is not done in a way that it guarantees that data will be properly migrated. If something unexpected happens during migration (i.e. power loss), state storage may be lost. Don't rely on it, when state storage contain critical data (i.e. energy meters or impulse counters).

Returns: true if storage migration is needed

Reimplemented from Supla::Element.

◆ iterateAlways()

void Supla::Control::RGBCCTBase::iterateAlways ( )

overridevirtual

Method called on each SuplaDevice iteration.

It should provide all actions that have to be executed periodically regardless of network state.

Reimplemented from Supla::Element.

◆ onFastTimer()

void Supla::Control::RGBCCTBase::onFastTimer ( )

overridevirtual

Method called on fast timer interupt.

It should provide all actions that have to be executed periodically regardless of other SuplaDevice activities. It is usually called every 1 ms (or 0.5 ms for Arduino Mega).

Reimplemented from Supla::Element.

◆ onInit()

void Supla::Control::RGBCCTBase::onInit ( )

overridevirtual

Third method called on element in SuplaDevice.begin()

Method called during SuplaDevice initialization. I.e. load initial state, initialize pins etc.

Reimplemented from Supla::Element.

Reimplemented in Supla::Control::RGBLeds, and Supla::Control::RGBWLeds.

◆ onLoadConfig()

void Supla::Control::RGBCCTBase::onLoadConfig ( SuplaDeviceClass * sdc )

overridevirtual

First method called on element in SuplaDevice.begin().

Called only if Config Storage class is configured. Element should read its configration in this method.

Parameters

sdc

Reimplemented from Supla::Element.

◆ onLoadState()

void Supla::Control::RGBCCTBase::onLoadState ( )

overridevirtual

Second method called on element in SuplaDevice.begin().

Method called during state Storage initialization (i.e. read from EEPROM, FRAM). Called only if Storage class is configured.

Reimplemented from Supla::Element.

Reimplemented in Supla::Control::RGBWBase.

◆ onSaveState()

void Supla::Control::RGBCCTBase::onSaveState ( )

overridevirtual

Method called periodically during SuplaDevice iteration.

It should provide state saving for this elemnet to Storage

Reimplemented from Supla::Element.

Reimplemented in Supla::Control::RGBWBase.

◆ purgeConfig()

void Supla::Control::RGBCCTBase::purgeConfig ( )

overridevirtual

Removes all configration data related to the element from Storage::Config.

Reimplemented from Supla::ElementWithChannelActions.

◆ setSkipLegacyMigration()

void Supla::Control::RGBCCTBase::setSkipLegacyMigration ( )

Disables storage conversion from legacy channel function to new.

Use together with convertStorageFromLegacyChannel to keep legacy storage format.

The documentation for this class was generated from the following files:

src/supla/control/rgb_cct_base.h
src/supla/control/rgb_cct_base.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ RGBCCTBase()

Member Function Documentation

◆ applyChannelConfig()

◆ convertStorageFromLegacyChannel()

◆ fillChannelConfig()

◆ fillSuplaChannelNewValue()

◆ getAncestorCount()

◆ getMissingGpioCount()

◆ handleAction()

◆ handleNewValueFromServer()

◆ hasParent()

◆ isStateStorageMigrationNeeded()

◆ iterateAlways()

◆ onFastTimer()

◆ onInit()

◆ onLoadConfig()

◆ onLoadState()

◆ onSaveState()

◆ purgeConfig()

◆ setSkipLegacyMigration()
