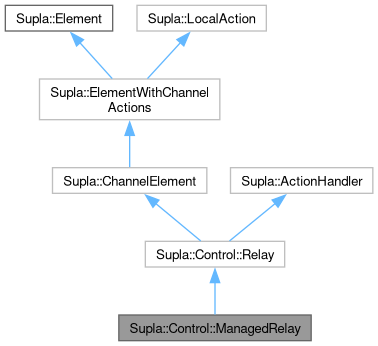

Inheritance diagram for Supla::Control::ManagedRelay:

[legend]

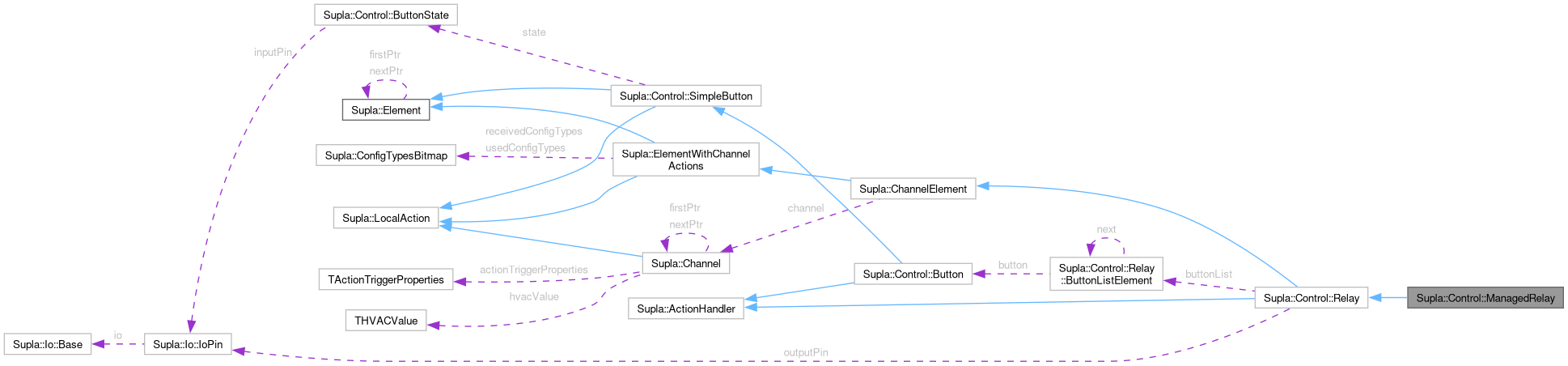

Collaboration diagram for Supla::Control::ManagedRelay:

[legend]

Public Member Functions
	ManagedRelay (Supla::Io::IoPin outputPin, Channel &externalChannel, _supla_int_t functions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

void	setRuntimeActive (bool active)

void	setStorageMode (bool active)

void	setLogicalState (bool state)

void	forceOff ()

void	loadEngineConfigOnly ()

void	purgeEngineConfigOnly ()

void	refreshWeeklyScheduleCapabilities ()

bool	isWeeklyScheduleConfigUsed () const

void	setupButtonActions (Button *button)

void	turnOn (_supla_int_t duration=0) override

void	turnOff (_supla_int_t duration=0) override

bool	isOn () override

void	toggle (_supla_int_t duration=0) override

void	handleAction (int event, int action) override

int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue) override
	Handles "new value" request from server.

void	iterateAlways () override
	Method called on each SuplaDevice iteration.

bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

bool	setRuntimeFunction (uint32_t channelFunction) override
	Sets channel's function at runtime.

Public Member Functions inherited from Supla::Control::Relay
	Relay (Supla::Io::IoPin outputPin, _supla_int_t functions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

	Relay (Supla::Io::Base *io, int pin, bool highIsOn=true, _supla_int_t functions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

	Relay (int pin, bool highIsOn=true, _supla_int_t functions=(0xFF ^ SUPLA_BIT_FUNC_CONTROLLINGTHEROLLERSHUTTER))

virtual Relay &	setDefaultStateOn ()

virtual Relay &	setDefaultStateOff ()

virtual Relay &	setDefaultStateRestore ()

virtual Relay &	setPreloadStateOnSoftReset (bool enabled=true)

virtual Relay &	keepTurnOnDuration (bool keep=true)

virtual uint8_t	pinOnValue ()

virtual uint8_t	pinOffValue ()

void	attach (Supla::Control::Button *)

void	handleAction (int event, int action) override

void	onLoadConfig (SuplaDeviceClass *sdc) override
	First method called on element in SuplaDevice.begin().

void	purgeConfig () override
	Removes all configration data related to the element from Storage::Config.

void	onInit () override
	Third method called on element in SuplaDevice.begin()

void	onLoadState () override
	Second method called on element in SuplaDevice.begin().

void	onSaveState () override
	Method called periodically during SuplaDevice iteration.

void	iterateAlways () override
	Method called on each SuplaDevice iteration.

bool	iterateConnected () override
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue) override
	Handles "new value" request from server.

void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc) override
	Method called each time when device successfully registers to Supla server.

Supla::ApplyConfigResult	applyChannelConfig (TSD_ChannelConfig *result, bool local=false) override

void	fillChannelConfig (void channelConfig, int size, uint8_t configType) override

bool	getRemainingCountdownTimerSec (uint32_t *remainingSec) const override
	Returns remaining countdown timer time in seconds for an active relay countdown timer.

void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value) override
	Fills TSD_SuplaChannelNewValue based on current state.

unsigned _supla_int_t	getStoredTurnOnDurationMs ()

void	setStoredTurnOnDurationMs (uint32_t durationMs)

bool	isStaircaseFunction (uint32_t functionToCheck=0) const

bool	isImpulseFunction (uint32_t functionToCheck=0) const

void	disableCountdownTimerFunction ()

void	enableCountdownTimerFunction ()

bool	isCountdownTimerFunctionEnabled () const

void	setMinimumAllowedDurationMs (uint32_t durationMs)

bool	isDefaultRelatedMeterChannelSet () const

uint32_t	getCurrentValueFromMeter () const

void	setDefaultRelatedMeterChannelNo (int channelNo)

void	setTurnOffWhenEmptyAggregator (bool turnOff)

void	setOvercurrentThreshold (uint32_t value)
	Set overcurrent threshold.

uint32_t	getOvercurrentThreshold () const
	Get overcurrent threshold.

void	setOvercurrentMaxAllowed (uint32_t value)
	Set overcurrent max level allowed.

uint32_t	getOvercurrentMaxAllowed () const
	Get overcurrent max level allowed.

void	setDefaultStaircaseDurationMs (uint16_t durationMs)
	Set default duration for staircase timer function.

void	setDefaultImpulseDurationMs (uint16_t durationMs)
	Set default duration for impulse functions (controlling gate, door etc.)

bool	setRuntimeFunction (uint32_t channelFunction) override
	Sets channel's function at runtime.

bool	setAndSaveFunction (uint32_t channelFunction) override

void	setRestartTimerOnToggle (bool restart)
	Set restart timer on toggle for staircase and impulse functions.

bool	isRestartTimerOnToggle () const
	Get restart timer on toggle for staircase and impulse functions.

bool	isFullyInitialized () const

void	enableCyclicMode (uint32_t turnOnTimeMs, uint32_t turnOffTimeMs)
	Enable automatic cyclic relay operation.

void	disableCyclicMode ()

bool	isCyclicMode () const

bool	isWeeklyScheduleSupported () const

Relay &	setWeeklyScheduleAvailable (bool available=true)

bool	isWeeklyScheduleAvailable () const

Relay &	setAutomaticModeSupported (bool supported=true)

bool	isAutomaticModeSupported () const

bool	isAutomaticMode () const

bool	setAutomaticMode (bool enabled)

bool	setWeeklyScheduleController (WeeklyScheduleController controller, WeeklyScheduleConfigHandler configHandler=nullptr, WeeklyScheduleProgramSource *programSource=nullptr)

Public Member Functions inherited from Supla::ChannelElement
	ChannelElement (int channelNumber=-1)

Channel *	getChannel () override

const Channel *	getChannel () const override
	Returns pointer to main channel.

Public Member Functions inherited from Supla::ElementWithChannelActions
	ElementWithChannelActions (ElementMode mode=ElementMode::Registered)

void	addAction (uint16_t action, ActionHandler &client, uint16_t event, bool alwaysEnabled=false) override

void	addAction (uint16_t action, ActionHandler *client, uint16_t event, bool alwaysEnabled=false) override

virtual void	addAction (uint16_t action, ActionHandler &client, uint16_t event, Supla::Condition *condition, bool alwaysEnabled=false)
	Adds a conditional local action for a specific event.

virtual void	addAction (uint16_t action, ActionHandler client, uint16_t event, Supla::Condition condition, bool alwaysEnabled=false)
	Pointer variant of addAction(action, client, event, condition).

virtual void	addAction (uint16_t action, ActionHandler &client, Supla::Condition *condition, bool alwaysEnabled=false)

virtual void	addAction (uint16_t action, ActionHandler client, Supla::Condition condition, bool alwaysEnabled=false)

bool	isEventAlreadyUsed (uint16_t event, bool ignoreAlwaysEnabled) override

void	handleChannelConfigFinished () override
	Handles "channel config finished" message from server.

void	handleChannelConfigFinished (int channelNumber) override
	Handles "channel config finished" for a specific channel.

uint8_t	handleChannelConfig (TSD_ChannelConfig *result, bool local=false) override
	Handles "set channel config" request from server.

uint8_t	handleWeeklySchedule (TSD_ChannelConfig *result, bool altSchedule=false, bool local=false) override
	Handles "set channel config" with "weekly schedule" type request from server.

void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result) override
	Handles "set channel config" reply from server.

void	runAction (uint16_t event) const override

void	runAction (uint16_t event, const ActionAllowList &allowOnlyActions) const override

bool	isAnyUpdatePending () const override
	Returns true if any update is pending.

void	triggerSetChannelConfig (int configType=SUPLA_CONFIG_TYPE_DEFAULT, bool localChange=false)

virtual bool	iterateConnected (void *ptr)
	deprecated

Public Member Functions inherited from Supla::Element
	Element (ElementMode mode=ElementMode::Registered)

virtual Control::ActionTrigger *	getActionTrigger ()

Element *	next ()
	Returns next Element from the list.

virtual bool	isStateStorageMigrationNeeded () const
	Method called after onInit() to check if state storage migration is needed.

virtual void	onTimer ()
	Method called on timer interupt.

virtual void	onFastTimer ()
	Method called on fast timer interupt.

virtual void	onSoftReset ()
	Method called when device soft restart is triggered.

virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.

virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.

virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.

virtual uint32_t	getCalcfgPendingTimeoutMs (TSD_DeviceCalCfgRequest *request) const
	Returns timeout in milliseconds for CALCFG requests that become pending.

int	getChannelNumber () const
	Returns channel number.

int	getSecondaryChannelNumber () const
	Returns secondary channel number.

virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.

virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.

virtual Channel *	getSecondaryChannel ()

const Channel *	getChannelByChannelNumber (int channelNumber) const
	Returns pointer to the channel matching channelNumber.

Channel *	getChannelByChannelNumber (int channelNumber)

virtual void	generateKey (char output, const char key) const
	Generates key used for Config.

Element &	disableChannelState ()
	Disables channel state (i) function.

bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.

void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.

bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.

bool	setFunction (uint32_t newFunction)
	Sets channel's function.

virtual void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction)
	Called when channel function changes.

Public Member Functions inherited from Supla::LocalAction
virtual bool	hasEnabledAction (uint16_t event, uint16_t action) const

virtual ActionHandlerClient *	getHandlerForFirstClient (uint16_t event)

virtual ActionHandlerClient *	getHandlerForClient (ActionHandler *client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	disableAction (int32_t action, ActionHandler *client, int32_t event)

virtual void	enableAction (int32_t action, ActionHandler *client, int32_t event)

virtual bool	disableActionsInConfigMode ()

Public Member Functions inherited from Supla::ActionHandler
virtual void	activateAction (int action)

virtual bool	deleteClient ()

virtual ActionHandler *	getRealClient ()

Additional Inherited Members
Static Public Member Functions inherited from Supla::Control::Relay
static void	setRelayStorageSaveDelay (uint32_t delayMs)

Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order)

static Element *	last ()
	Returns last Element (based on creation order)

static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.

static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.

static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.

static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.

static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.

static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.

Static Public Member Functions inherited from Supla::LocalAction
static void	DeleteActionsHandledBy (const ActionHandler *client)

static void	DeleteActionsHandledByExcept (const ActionHandler *client, const ActionAllowList &preservedActions)

static void	DeleteActionsTriggeredBy (const LocalAction *action)

static void	DeleteAction (const LocalAction trigger, const ActionHandler client, uint16_t event, uint16_t action)

static void	NullifyActionsHandledBy (const ActionHandler *client)

static ActionHandlerClient *	getClientListPtr ()

Protected Member Functions inherited from Supla::Control::Relay
	Relay (Supla::Io::IoPin outputPin, _supla_int_t functions, Supla::Channel &externalChannel, ElementMode mode)

void	applyDuration (int32_t durationMs, bool turnOn)

void	setOvercurrentThreshold (uint32_t value, bool local)

virtual void	setNewChannelValue (bool value)

virtual void	fillDefaultWeeklySchedule (TChannelConfig_WeeklySchedule *schedule)

virtual bool	canUseWeeklySchedule () const

virtual bool	isWeeklyScheduleProgramModeSupported (uint8_t mode) const

bool	isWeeklyScheduleProgramModeAvailable (uint8_t mode) const

bool	isWeeklyScheduleProgramModeApplicable (uint8_t mode) const

bool	hasAnyWeeklyScheduleProgramModeAvailable () const

virtual void	iterateAutomaticMode ()

void	saveConfig () const

void	loadRelayConfigOnly ()

bool	ensureNativeWeeklyScheduleController ()

void	updateWeeklyScheduleCapabilities ()

void	updateAutomaticModeCapability ()

void	purgeRelayConfigOnly ()

void	updateTimerValue ()

void	emitCountdownTimerActionIfNeeded ()

void	updateRelayHvacAggregator ()

bool	isManualActionAllowed (bool turnOn) const

bool	isManualForcedModeSupported () const

bool	setManualForcedMode (uint8_t mode)

void	disableWeeklySchedule ()

void	applyWeeklyScheduleProgram (uint8_t programMode, bool programChanged)

virtual bool	applyWeeklyScheduleState (bool on)

void	notifyWeeklyScheduleManualAction ()

Protected Member Functions inherited from Supla::ChannelElement
	ChannelElement (Channel &externalChannel, ElementMode mode)

Protected Member Functions inherited from Supla::ElementWithChannelActions
virtual bool	loadFunctionFromConfig ()

virtual bool	shouldProcessChannelFunctionFromConfig () const

bool	setAndSaveConfigChangeFlag (bool value)

virtual bool	saveConfigChangeFlag () const

virtual bool	loadConfigChangeFlag ()

void	clearChannelConfigChangedFlag ()

void	markChannelConfigReceived (int configType)

void	markAllChannelConfigsReceived ()

bool	isChannelConfigFinishedReceived () const

bool	isLocalChannelConfigChangePending (int configType) const

bool	iterateConfigExchange ()

int	getNextConfigType () const
	Returns the next config type to be sent.

int	getNextLocalConfigType () const

bool	setLocalConfigChange (int configType, bool value=true)

void	clearLocalConfigChanges (int configType, int secondConfigType=-1)

uint8_t	getUsedLocalConfigTypes () const

Protected Attributes inherited from Supla::Control::Relay
uint32_t	durationMs = 0

uint32_t	storedTurnOnDurationMs = 0

uint32_t	durationTimestamp = 0

uint32_t	turnOffDurationForCycle = 0

uint16_t	defaultStaircaseDurationMs = 10000

uint16_t	defaultImpulseDurationMs = 500

uint32_t	overcurrentThreshold = 0

uint32_t	overcurrentMaxAllowed = 0

uint32_t	overcurrentActiveTimestamp = 0

uint32_t	overcurrentCheckTimestamp = 0

uint32_t	timerUpdateTimestamp = 0

uint32_t	lastCountdownTimerRemainingSec = UINT32_MAX

uint32_t	postponeCommTimestamp = 0

ButtonListElement *	buttonList = nullptr

uint16_t	minimumAllowedDurationMs = 0

int16_t	defaultRelatedMeterChannelNo = -1

RuntimeFlags	runtimeFlags

int8_t	stateOnInit = STATE_ON_INIT_OFF

Supla::Io::IoPin	outputPin

WeeklyScheduleComponents	weeklyScheduleComponents

Protected Attributes inherited from Supla::ChannelElement
unsigned char	ownedChannelStorage [sizeof(Channel)] = {}

Channel &	channel

bool	ownsChannel = false

Protected Attributes inherited from Supla::ElementWithChannelActions
ChannelConfigState	channelConfigState: 4

uint8_t	setChannelConfigAttempts: 2

uint8_t	configFinishedReceived: 1

uint8_t	reserved: 1

ConfigTypesBitmap	locallyChangedConfigTypes

ConfigTypesBitmap	usedConfigTypes

ConfigTypesBitmap	receivedConfigTypes

Protected Attributes inherited from Supla::Element
bool	registeredElement = true

Element *	nextPtr = nullptr

Static Protected Attributes inherited from Supla::Control::Relay
static uint16_t	relayStorageSaveDelay = 5000

Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr

static bool	invalidatePtr = false

Member Function Documentation

◆ handleAction()

void Supla::Control::ManagedRelay::handleAction	(	int	event,
		int	action )

overridevirtual

Implements Supla::ActionHandler.

◆ handleNewValueFromServer()

int32_t Supla::Control::ManagedRelay::handleNewValueFromServer ( TSD_SuplaChannelNewValue * newValue )

overridevirtual

Handles "new value" request from server.

Parameters

newValue pointer to TSD_SuplaChannelNewValue

Returns: -1 - don't send reply to server 0 - success==false 1 - success==true

Reimplemented from Supla::Element.

◆ isOn()

bool Supla::Control::ManagedRelay::isOn ( )

overridevirtual

Reimplemented from Supla::Control::Relay.

◆ iterateAlways()

void Supla::Control::ManagedRelay::iterateAlways ( )

overridevirtual

Method called on each SuplaDevice iteration.

It should provide all actions that have to be executed periodically regardless of network state.

Reimplemented from Supla::Element.

◆ iterateConnected()

bool Supla::Control::ManagedRelay::iterateConnected ( )

overridevirtual

Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

Returns: true when element didn't communicate with server and next element should be iterated instead. false otherwise.

Reimplemented from Supla::ElementWithChannelActions.

◆ setRuntimeFunction()

bool Supla::Control::ManagedRelay::setRuntimeFunction ( uint32_t newFunction )

overridevirtual

Sets channel's function at runtime.

Elements which require additional runtime setup after a function change should override this method. The default implementation calls setFunction().

Parameters

newFunction

Returns: true if function was changed, false otherwise

Reimplemented from Supla::Element.

◆ toggle()

void Supla::Control::ManagedRelay::toggle ( _supla_int_t duration = 0 )

overridevirtual

Reimplemented from Supla::Control::Relay.

◆ turnOff()

void Supla::Control::ManagedRelay::turnOff ( _supla_int_t duration = 0 )

overridevirtual

Reimplemented from Supla::Control::Relay.

◆ turnOn()

void Supla::Control::ManagedRelay::turnOn ( _supla_int_t duration = 0 )

overridevirtual

Reimplemented from Supla::Control::Relay.

The documentation for this class was generated from the following files:

src/supla/control/relay_roller_shutter_pair.h
src/supla/control/relay_roller_shutter_pair.cpp

Public Member Functions

Additional Inherited Members

Member Function Documentation

◆ handleAction()

◆ handleNewValueFromServer()

◆ isOn()

◆ iterateAlways()

◆ iterateConnected()

◆ setRuntimeFunction()

◆ toggle()

◆ turnOff()

◆ turnOn()
