Inheritance diagram for Configurator:

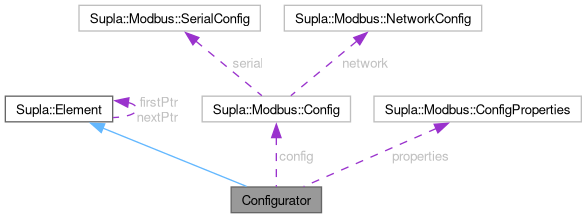

Collaboration diagram for Configurator:

[legend]

Public Member Functions
void	onLoadConfig (SuplaDeviceClass *) override
	First method called on element in SuplaDevice.begin().

void	onDeviceConfigChange (uint64_t fieldBit) override
	Method called when device config is changed.

bool	isNetworkModeEnabled () const

bool	isSerialModeEnabled () const

bool	isModbusDisabled () const

bool	isMaster () const

bool	isSlave () const

bool	isRtuMode () const

bool	isAsciiMode () const

void	setConfig (const Supla::Modbus::Config &config)

void	storeConfig () const

void	printConfig () const

const Supla::Modbus::Config &	getConfig () const

const Supla::Modbus::ConfigProperties &	getProperties () const

void	setProperties (const Supla::Modbus::ConfigProperties &newProperties)

Public Member Functions inherited from Supla::Element
Element *	next ()
	Returns next Element from the list.

virtual void	purgeConfig ()
	Removes all configration data related to the element from Storage::Config.

virtual void	onLoadState ()
	Second method called on element in SuplaDevice.begin().

virtual void	onInit ()
	Third method called on element in SuplaDevice.begin()

virtual void	onSaveState ()
	Method called periodically during SuplaDevice iteration.

virtual void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc=nullptr)
	Method called each time when device successfully registers to Supla server.

virtual void	iterateAlways ()
	Method called on each SuplaDevice iteration.

virtual bool	iterateConnected ()
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

virtual bool	iterateConnected (void *ptr)
	deprecated

virtual void	onTimer ()
	Method called on timer interupt.

virtual void	onFastTimer ()
	Method called on fast timer interupt.

virtual void	onSoftReset ()
	Method called when device soft restart is triggered.

virtual int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue)
	Handles "new value" request from server.

virtual void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value)
	Fills TSD_SuplaChannelNewValue based on current state.

virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.

virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.

virtual uint8_t	handleChannelConfig (TSD_ChannelConfig *newChannelConfig, bool local=false)
	Handles "set channel config" request from server.

virtual uint8_t	handleWeeklySchedule (TSD_ChannelConfig *newWeeklySchedule, bool altSchedule=false, bool local=false)
	Handles "set channel config" with "weekly schedule" type request from server.

virtual void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result)
	Handles "set channel config" reply from server.

virtual void	handleChannelConfigFinished ()
	Handles "channel config finished" message from server.

int	getChannelNumber () const
	Returns channel number.

int	getSecondaryChannelNumber () const
	Returns secondary channel number.

virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.

virtual const Channel *	getChannel () const
	Returns pointer to main channel.

virtual Channel *	getChannel ()

virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.

virtual Channel *	getSecondaryChannel ()

virtual void	generateKey (char output, const char key) const
	Generates key used for Config.

Element &	disableChannelState ()
	Disables channel state (i) function.

bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.

virtual bool	isAnyUpdatePending ()
	Returns true if any update is pending.

void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.

void	setDefaultFunction (int32_t defaultFunction)
	Sets default channel's function.

Protected Attributes
bool	configChanged = false

Supla::Modbus::Config	config

Supla::Modbus::ConfigProperties	properties

Protected Attributes inherited from Supla::Element
Element *	nextPtr = nullptr

Additional Inherited Members
Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order)

static Element *	last ()
	Returns last Element (based on creation order)

static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.

static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.

static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.

static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.

static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.

static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.

Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr

static bool	invalidatePtr = false

Member Function Documentation

◆ onDeviceConfigChange()

void Configurator::onDeviceConfigChange ( uint64_t fieldBit )

overridevirtual

Method called when device config is changed.

Parameters

fieldBit bit mask of changed field

Reimplemented from Supla::Element.

◆ onLoadConfig()

void Configurator::onLoadConfig ( SuplaDeviceClass * sdc )

overridevirtual

First method called on element in SuplaDevice.begin().

Called only if Config Storage class is configured. Element should read its configration in this method.

Parameters

sdc

Reimplemented from Supla::Element.

The documentation for this class was generated from the following files:

src/supla/modbus/modbus_configurator.h
src/supla/modbus/modbus_configurator.cpp
