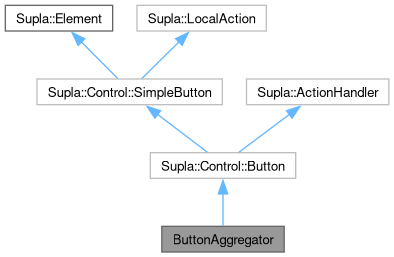

Inheritance diagram for ButtonAggregator:

[legend]

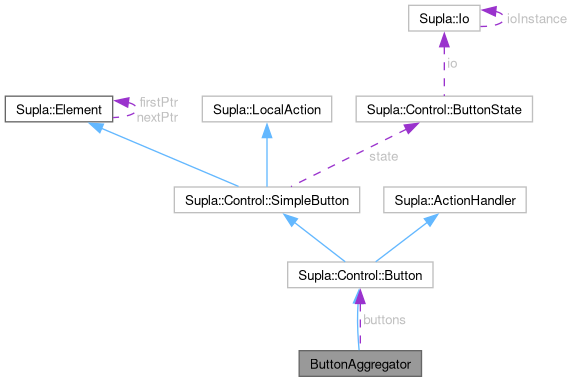

Collaboration diagram for ButtonAggregator:

[legend]

Public Member Functions
void	onTimer () override
	Method called on timer interupt.

void	handleAction (int event, int action) override

bool	addButton (Supla::Control::Button *button)

Public Member Functions inherited from Supla::Control::Button
	Button (Supla::Io::Base *io, int pin, bool pullUp=false, bool invertLogic=false)

	Button (int pin, bool pullUp=false, bool invertLogic=false)

void	onLoadConfig (SuplaDeviceClass *) override
	First method called on element in SuplaDevice.begin().

void	onInit () override
	Third method called on element in SuplaDevice.begin()

void	addAction (uint16_t action, ActionHandler &client, uint16_t event, bool alwaysEnabled=false) override

void	addAction (uint16_t action, ActionHandler *client, uint16_t event, bool alwaysEnabled=false) override

void	disableAction (int32_t action, ActionHandler *client, int32_t event) override

void	enableAction (int32_t action, ActionHandler *client, int32_t event) override

void	setHoldTime (unsigned int timeMs)

void	repeatOnHoldEvery (unsigned int timeMs)

void	setMulticlickTime (unsigned int timeMs, bool bistableButton=false)

void	setButtonType (const ButtonType type)

bool	isBistable () const

bool	isMonostable () const

bool	isMotionSensor () const

bool	isCentral () const

virtual void	configureAsConfigButton (SuplaDeviceClass *sdc)

bool	disableActionsInConfigMode () override

void	dontUseOnLoadConfig ()

void	setOnLoadConfigType (OnLoadConfigType type)

uint8_t	getMaxMulticlickValue ()

int8_t	getButtonNumber () const override

void	setButtonNumber (int8_t number)

void	disableButton ()

void	enableButton ()

void	waitForRelease ()

uint32_t	getLastStateChange () const

void	setAllowHoldOnPowerOn (bool allow)

Public Member Functions inherited from Supla::Control::SimpleButton
	SimpleButton (Supla::Io::Base *io, int pin, bool pullUp=false, bool invertLogic=false)

	SimpleButton (int pin, bool pullUp=false, bool invertLogic=false)

void	onTimer () override
	Method called on timer interupt.

void	onInit () override
	Third method called on element in SuplaDevice.begin()

void	setSwNoiseFilterDelay (unsigned int newDelayMs)

void	setDebounceDelay (unsigned int newDelayMs)

enum StateResults	getLastState () const

bool	isReady () const

Public Member Functions inherited from Supla::Element
Element *	next ()
	Returns next Element from the list.

virtual void	purgeConfig ()
	Removes all configration data related to the element from Storage::Config.

virtual void	onLoadState ()
	Second method called on element in SuplaDevice.begin().

virtual void	onSaveState ()
	Method called periodically during SuplaDevice iteration.

virtual void	onRegistered (Supla::Protocol::SuplaSrpc *suplaSrpc=nullptr)
	Method called each time when device successfully registers to Supla server.

virtual void	iterateAlways ()
	Method called on each SuplaDevice iteration.

virtual bool	iterateConnected ()
	Method called on each SuplaDevice iteration when device is connected and registered to Supla server or other protocol.

virtual bool	iterateConnected (void *ptr)
	deprecated

virtual void	onFastTimer ()
	Method called on fast timer interupt.

virtual void	onSoftReset ()
	Method called when device soft restart is triggered.

virtual void	onDeviceConfigChange (uint64_t fieldBit)
	Method called when device config is changed.

virtual int32_t	handleNewValueFromServer (TSD_SuplaChannelNewValue *newValue)
	Handles "new value" request from server.

virtual void	fillSuplaChannelNewValue (TSD_SuplaChannelNewValue *value)
	Fills TSD_SuplaChannelNewValue based on current state.

virtual void	handleGetChannelState (TDSC_ChannelState *channelState)
	Handles "get channel state (i)" request from server.

virtual int	handleCalcfgFromServer (TSD_DeviceCalCfgRequest *request)
	Handles CALCFG requests from server.

virtual uint8_t	handleChannelConfig (TSD_ChannelConfig *newChannelConfig, bool local=false)
	Handles "set channel config" request from server.

virtual uint8_t	handleWeeklySchedule (TSD_ChannelConfig *newWeeklySchedule, bool altSchedule=false, bool local=false)
	Handles "set channel config" with "weekly schedule" type request from server.

virtual void	handleSetChannelConfigResult (TSDS_SetChannelConfigResult *result)
	Handles "set channel config" reply from server.

virtual void	handleChannelConfigFinished ()
	Handles "channel config finished" message from server.

int	getChannelNumber () const
	Returns channel number.

int	getSecondaryChannelNumber () const
	Returns secondary channel number.

virtual bool	isOwnerOfSubDeviceId (int subDeviceId) const
	Returns true if element is owner of subDeviceId.

virtual const Channel *	getChannel () const
	Returns pointer to main channel.

virtual Channel *	getChannel ()

virtual const Channel *	getSecondaryChannel () const
	Returns pointer to secondary channel.

virtual Channel *	getSecondaryChannel ()

virtual void	generateKey (char output, const char key) const
	Generates key used for Config.

Element &	disableChannelState ()
	Disables channel state (i) function.

bool	isChannelStateEnabled () const
	Returns true if channel state (i) function is enabled.

virtual bool	isAnyUpdatePending ()
	Returns true if any update is pending.

void	setInitialCaption (const char *caption, bool secondaryChannel=false)
	Sets initial caption.

bool	setDefaultFunction (uint32_t defaultFunction)
	Sets default channel's function.

bool	setFunction (uint32_t newFunction)
	Sets channel's function.

virtual void	onFunctionChange (uint32_t currentFunction, uint32_t newFunction)
	Called when channel function changes.

Public Member Functions inherited from Supla::LocalAction
virtual void	runAction (uint16_t event) const

virtual bool	isEventAlreadyUsed (uint16_t event, bool ignoreAlwaysEnabled)

virtual ActionHandlerClient *	getHandlerForFirstClient (uint16_t event)

virtual ActionHandlerClient *	getHandlerForClient (ActionHandler *client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler &client, uint16_t event)

virtual void	disableOtherClients (const ActionHandler *client, uint16_t event)

virtual void	enableOtherClients (const ActionHandler *client, uint16_t event)

Public Member Functions inherited from Supla::ActionHandler
virtual void	activateAction (int action)

virtual bool	deleteClient ()

virtual ActionHandler *	getRealClient ()

Protected Attributes
Supla::Control::Button *	buttons [BUTTON_AGGREGATOR_MAX_BUTTONS] = {}

int	pressCount = 0

int	buttonCount = 0

bool	stateChanged = false

uint32_t	allPressedTimestamp = 0

Protected Attributes inherited from Supla::Control::Button
uint32_t	lastStateChangeMs = 0

uint16_t	repeatOnHoldMs = 0

uint16_t	holdSend = 0

uint16_t	holdTimeMs = 0

uint16_t	multiclickTimeMs = 0

ButtonType	buttonType = ButtonType::MONOSTABLE

enum OnLoadConfigType	onLoadConfigType = OnLoadConfigType::LOAD_FULL_CONFIG

uint8_t	clickCounter = 0

uint8_t	maxMulticlickValueConfigured = 0

bool	repeatOnHoldEnabled = false

bool	configButton = false

int8_t	buttonNumber = -1

bool	disabled = false

bool	allowHoldOnPowerOn = false

bool	waitingForRelease = false

Protected Attributes inherited from Supla::Control::SimpleButton
ButtonState	state

Protected Attributes inherited from Supla::Element
Element *	nextPtr = nullptr

Additional Inherited Members
Public Types inherited from Supla::Control::Button
enum class	ButtonType : uint8_t { MONOSTABLE , BISTABLE , MOTION_SENSOR , CENTRAL_CONTROL }

enum class	OnLoadConfigType : uint8_t { LOAD_FULL_CONFIG , LOAD_BUTTON_SETUP_ONLY , DONT_LOAD_CONFIG }

Static Public Member Functions inherited from Supla::Element
static Element *	begin ()
	Returns first Element (based on creation order)

static Element *	last ()
	Returns last Element (based on creation order)

static Element *	getElementByChannelNumber (int channelNumber)
	Returns Element by channel number.

static Element *	getOwnerOfSubDeviceId (int subDeviceId)
	Returns Element which owns given subDeviceId.

static bool	IsAnyUpdatePending ()
	Checks if any element has pending update for remote server.

static void	NotifyElementsAboutConfigChange (uint64_t fieldBit)
	Notifies all elements about device config change.

static bool	IsInvalidPtrSet ()
	When "invalid pointer" is set, previously obtained Element pointer may be invalid.

static void	ClearInvalidPtr ()
	Clears "invalid pointer" flag.

Static Public Member Functions inherited from Supla::LocalAction
static void	DeleteActionsHandledBy (const ActionHandler *client)

static void	DeleteActionsTriggeredBy (const LocalAction *action)

static void	NullifyActionsHandledBy (const ActionHandler *client)

static ActionHandlerClient *	getClientListPtr ()

Protected Member Functions inherited from Supla::Control::Button
void	evaluateMaxMulticlickValue ()

void	disableRepeatOnHold (uint32_t threshold=0)

void	enableRepeatOnHold ()

const char *	getButtonTypeName (ButtonType type) const

Static Protected Attributes inherited from Supla::Control::Button
static int	buttonCounter = 0

Static Protected Attributes inherited from Supla::Element
static Element *	firstPtr = nullptr

static bool	invalidatePtr = false

Member Function Documentation

◆ handleAction()

void ButtonAggregator::handleAction	(	int	event,
		int	action )

overridevirtual

Reimplemented from Supla::Control::Button.

◆ onTimer()

void ButtonAggregator::onTimer ( )

overridevirtual

Method called on timer interupt.

It should provide all actions that have to be executed periodically regardless of other SuplaDevice activities. It is usually called every 10 ms.

Reimplemented from Supla::Control::Button.

The documentation for this class was generated from the following files:

src/supla/control/button_aggregator.h
src/supla/control/button_aggregator.cpp
